Door and Window Plan Detail Drawing for Building Layout Design

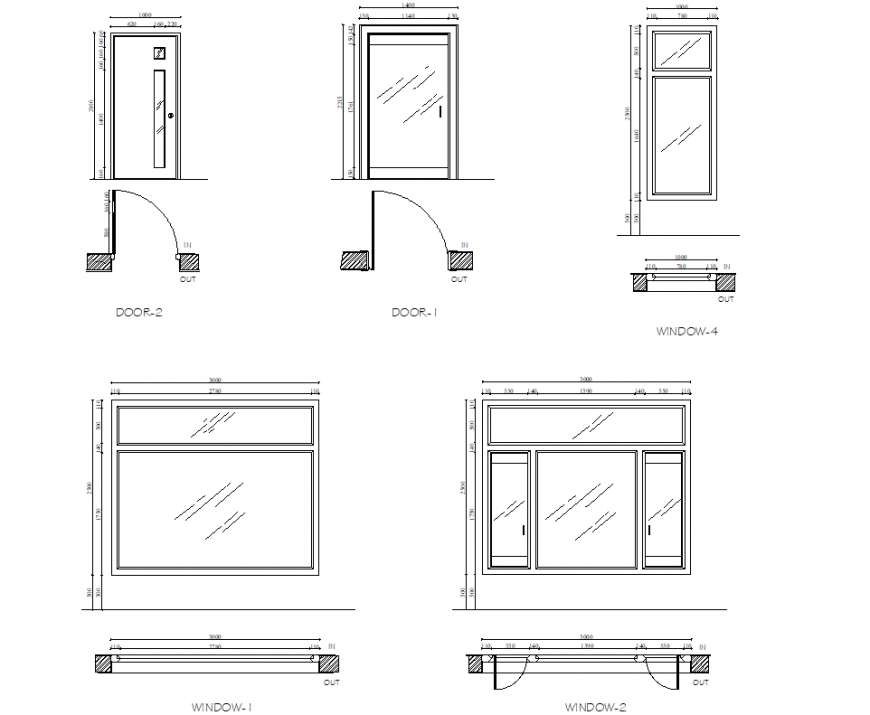

This architectural drawing presents a complete door and window plan detail for residential and commercial building projects with accurate layout dimensions, frame measurements, opening positions, and sectional drafting references. The drawing includes detailed door sizes, window placement layouts, frame thickness, shutter alignment, wall connection details, and construction planning information useful for building execution and interior drafting work. This AutoCAD file collection supports architects, civil engineers, interior designers, builders, and CAD professionals working on floor planning, structural coordination, and construction documentation using dwg files and cad files. The plan helps improve drafting accuracy and simplifies door and window arrangement in architectural layouts with practical design references for modern construction projects.
