Typical transom spend rel mullion and marble fixation structure details dwg file


Description

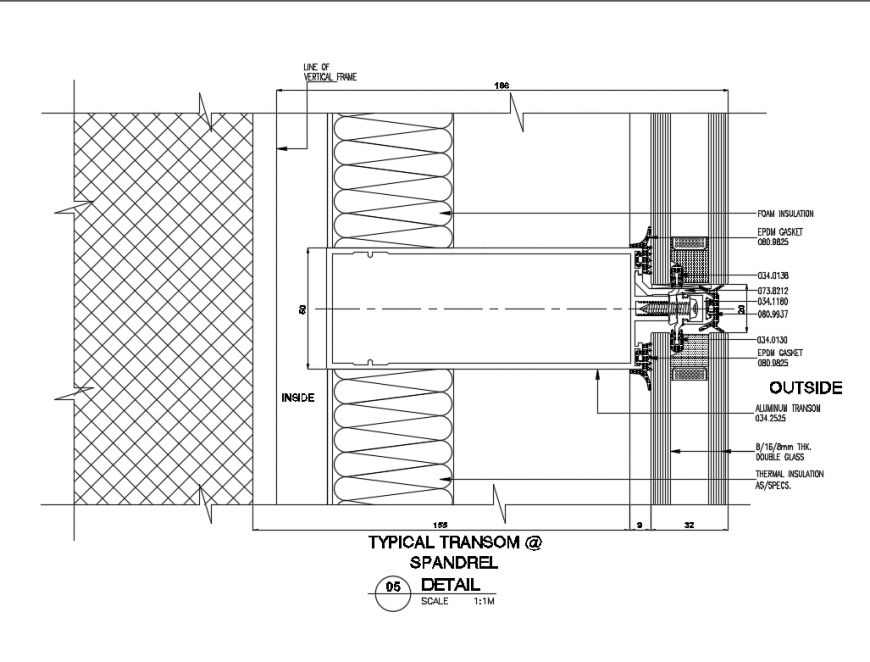

Typical transom spend rel mullion and marble fixation structure details that includes a detailed view of typical beam details, typical transom spandrel, typical rail spandrel, typical jamb column, stone cladding, (by main contractor), mechanical fixation as per granite contractor, 3mm black epdm spacer bet mullion and transom, aluminum transom and much more of structure details.
