Bathroom Sanitary Ware Plan with Hand Wash Basin Detail Sizes

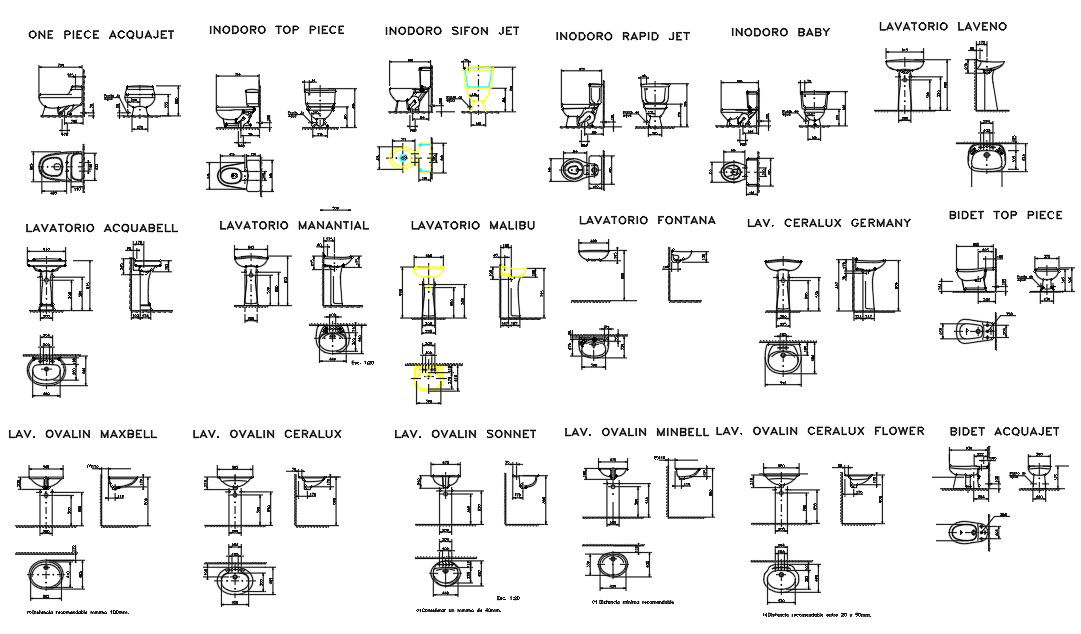

The bathroom sanitary ware plan drawing presents detailed hand-wash basin blocks with complete dimension specifications in AutoCAD format. The drawing includes different types of wash basins such as wall mounted basin, pedestal basins, counter top basin, and semi recessed basin, with accurate size references. Standard basin widths range from 0.370 m to 0.600 m, depth from 0.300 m to 0.500 m, and installation height around 0.800 m to 0.850 m as shown in plan and elevation views. Each bathroom sanitary ware element is drafted with clear centerline marking, water outlet position, and fixing alignment for precise layout planning.
