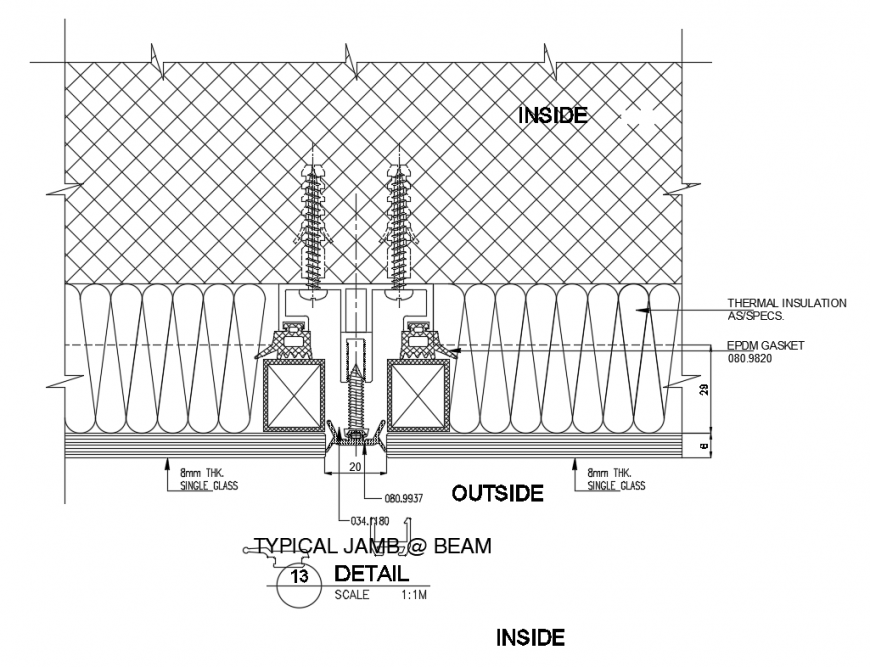

Typical jamb beam structure mullion and marble fixation constructive details dwg file

Typical jamb beam structure mullion and marble fixation constructive details that includes a detailed view of typical beam details, typical transom spandrel, typical rail spandrel, typical jamb column, stone cladding, (by main contractor), mechanical fixation as per granite contractor, 3mm black epdm spacer bet mullion and transom, aluminum transom and much more of structure details.
