Multi section enclosure constructive sectional details dwg file

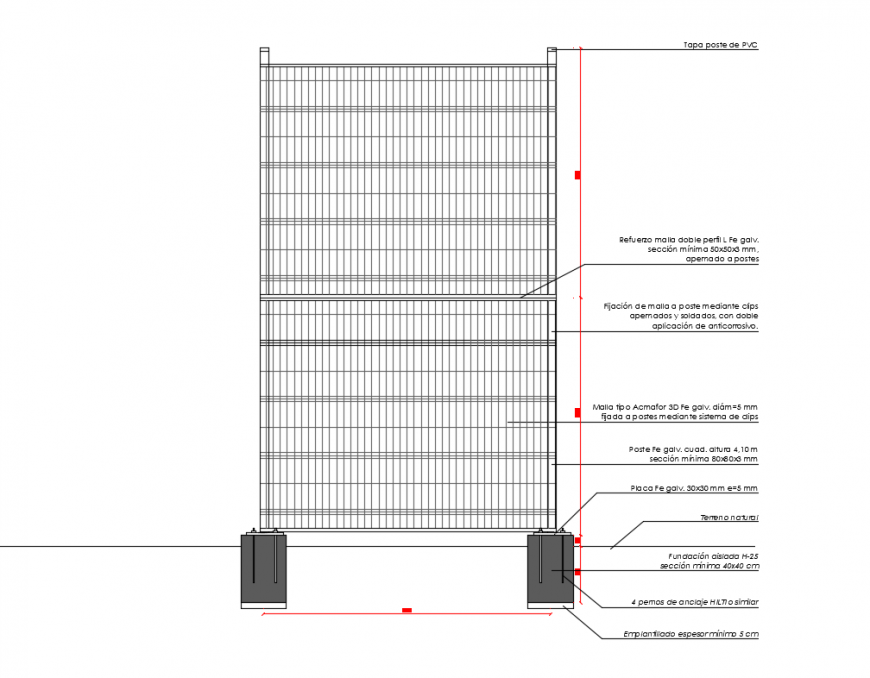

Multi section enclosure constructive sectional details that includes a detailed view of Reinforcement mesh double profile L Fe galv. 50x50x3 mm minimum section, bolted to posts, Fixing mesh to post using bolted and welded clips, with double application of anticorrosive, mesh type acmafor 3d fe galv. diam = 5 mm fixed to posts by clips system, post galv. quad height 4.10 m minimum section 80x80x3 mm and much more of constructive details.
