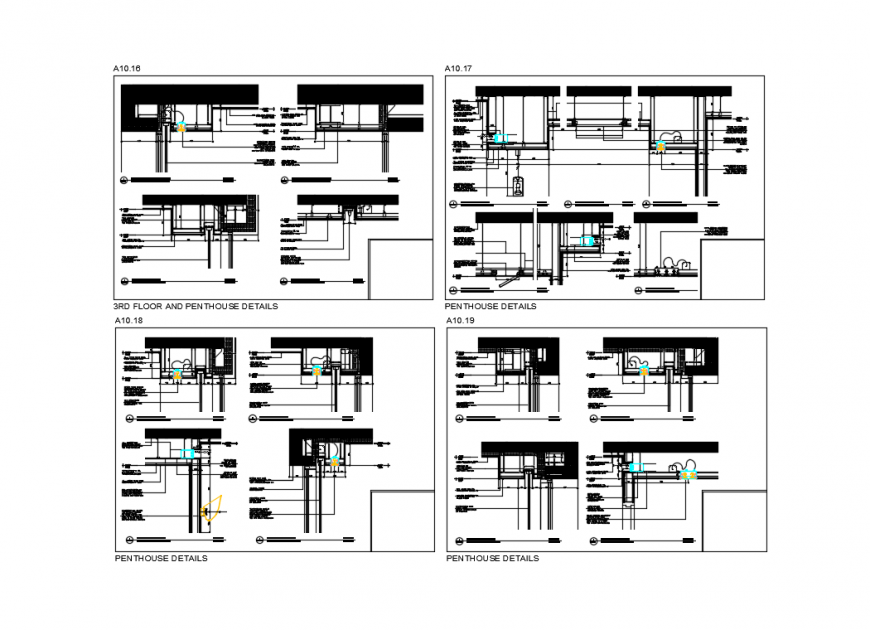

Reflected ceiling construction details of all floors of pen house dwg file


Description

Reflected ceiling construction details of all floors of pen house that includes a detailed view of 120x30cm granite wall panel, on ventilated mounting system, exterior waterproof halogen wall mounted light fixture high intensity led, demco modular see ceiling plan and spec , corp iluminat  de exterior  rezistent, exterior finish 3cm& insulation system efis 12cm, exterior finish 3cm& insulation system efis 12cm and much more of ceiling details.




File Type: DWG File ID: 137698

Uploaded by:


Eiz Luna
New-Zealand
