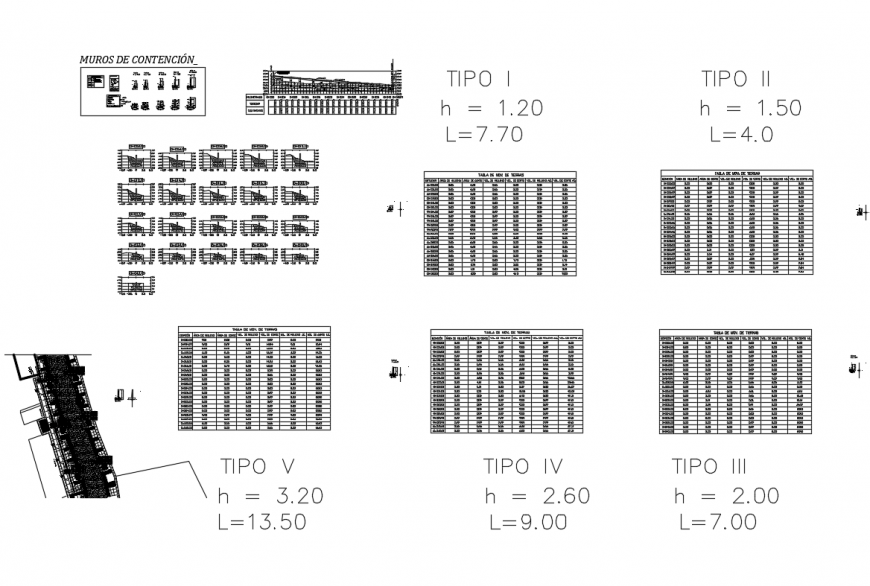

Retaining walls construction details of all floors of house dwg file


Description

Retaining walls construction details of all floors of house that includes a detailed view of Reinforced concrete parapet,  Stuffed with  tezontle, average thickness, Stuck with cement-sand mortar prop, Waterproofing based on prefabricated membrane, Wall concrete hollow block smooth finish, based on granitic  acrylic resins, Hollow block wall heavy type of cm, common finish, joined with sand cement mortar with horizontal reinforcement and drowned castles and much more of wall construction details.




File Type: DWG File ID: 137969

Uploaded by:


Eiz Luna
New-Zealand
