Water heater plumbing cad structure details dwg file


Description

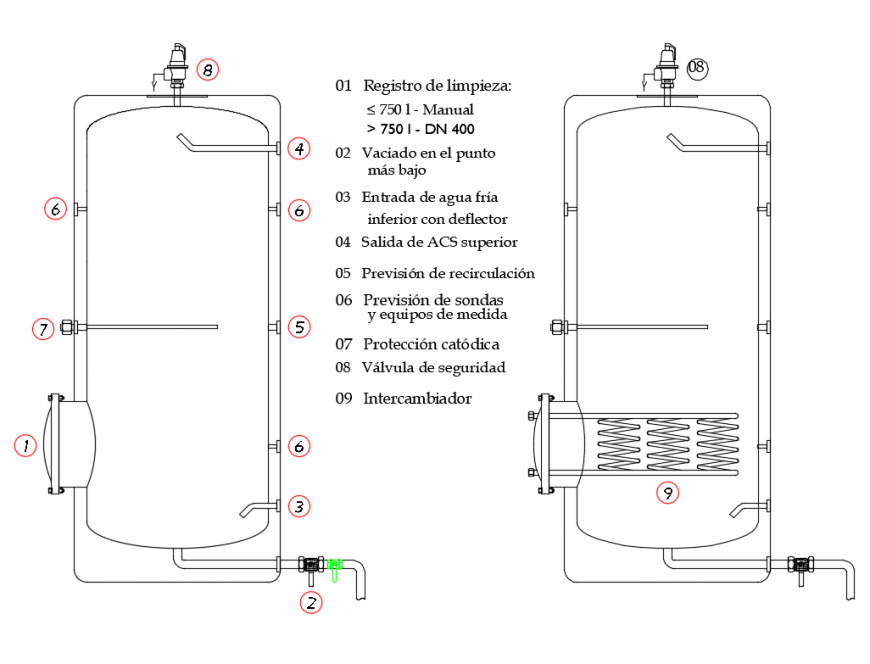

Water heater plumbing cad structure details that includes a detailed view of Cleaning record, emptying at the lowest point, Lower cold water inlet with baffle, superior acs output, recirculation forecast, forecast of probes and measuring equipment, cathodic protection, security valve, exchanger and much more of water tank details.




File Type: DWG File ID: 138070

Uploaded by:


Eiz Luna
New-Zealand
