Detail of structural joints constructive details with reinforcement dwg file


Description

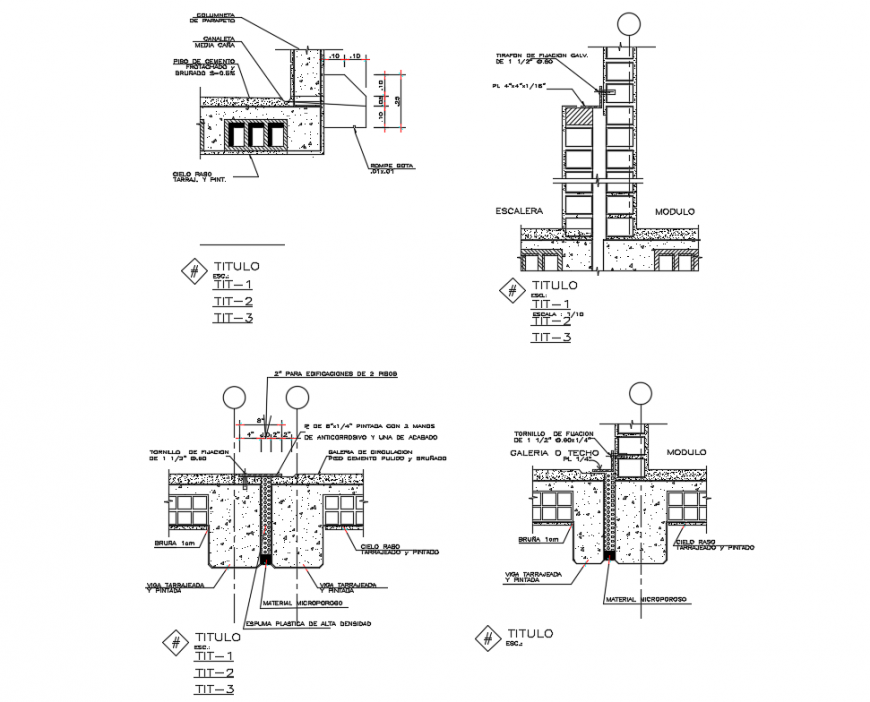

Detail of structural joints constructive details with reinforcement that includes a detailed view of Reinforced concrete parapet,  Stuffed with  tezontle, average thickness, Stuck with cement-sand mortar prop, Waterproofing based on prefabricated membrane, Wall concrete hollow block smooth finish, based on granitic  acrylic resins, Hollow block wall heavy type of cm, common finish, joined with sand cement mortar with horizontal reinforcement and drowned castles, Galvamet monomuro panel and  thick, finished with white pre-lacquered galvanized steel sheet, finished and much more of structure details.




File Type: DWG File ID: 138084
