Complex Construction CAD Drawing with Foundation Plan Details

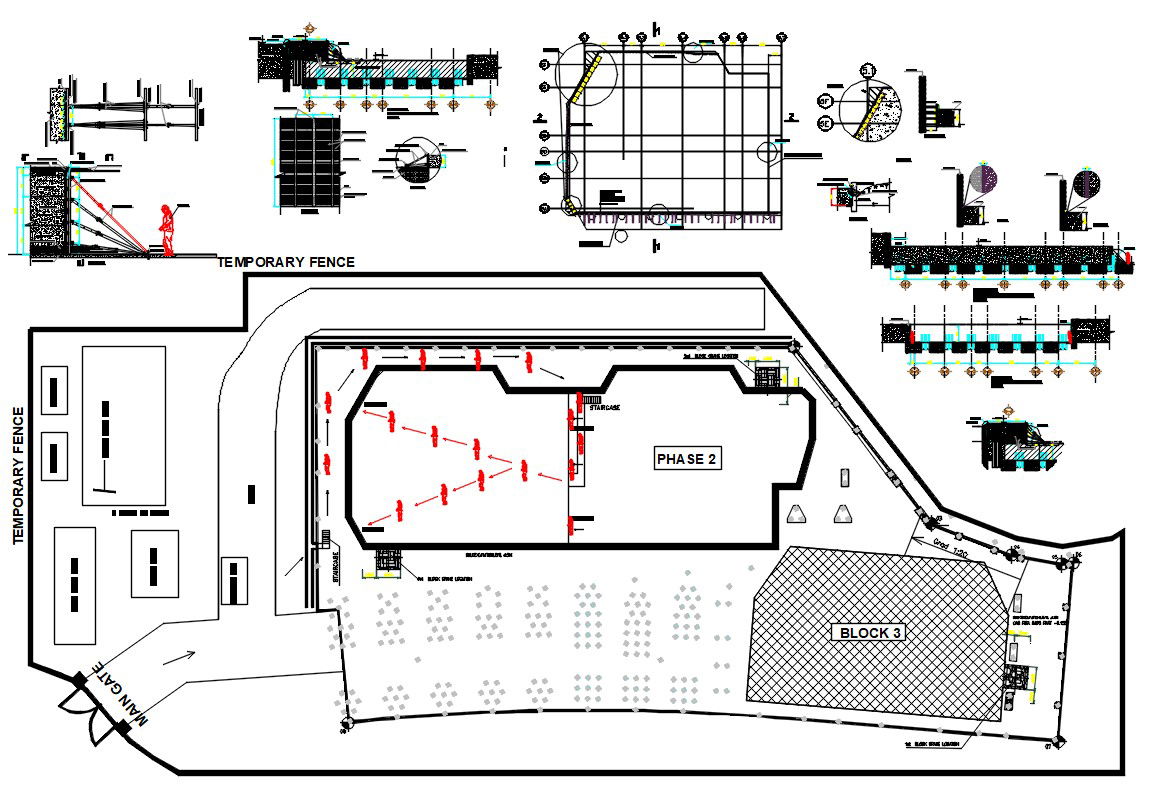

This Complex Construction CAD Drawing presents a comprehensive working plan prepared in AutoCAD format including structure details, foundation layout, joint construction plan, and concrete pouring layer sections. The drawing illustrates column grid alignment, footing placement, slab reinforcement zones, and structural boundary demarcations. Temporary fencing layout, access circulation paths, staircase positioning, and phased construction areas are clearly defined to support organized site execution. Section views highlight concrete layer thickness, reinforcement detailing, and joint treatment for structural stability.
