3D Steel Formwork Structure with Channel and Angle Frame Design

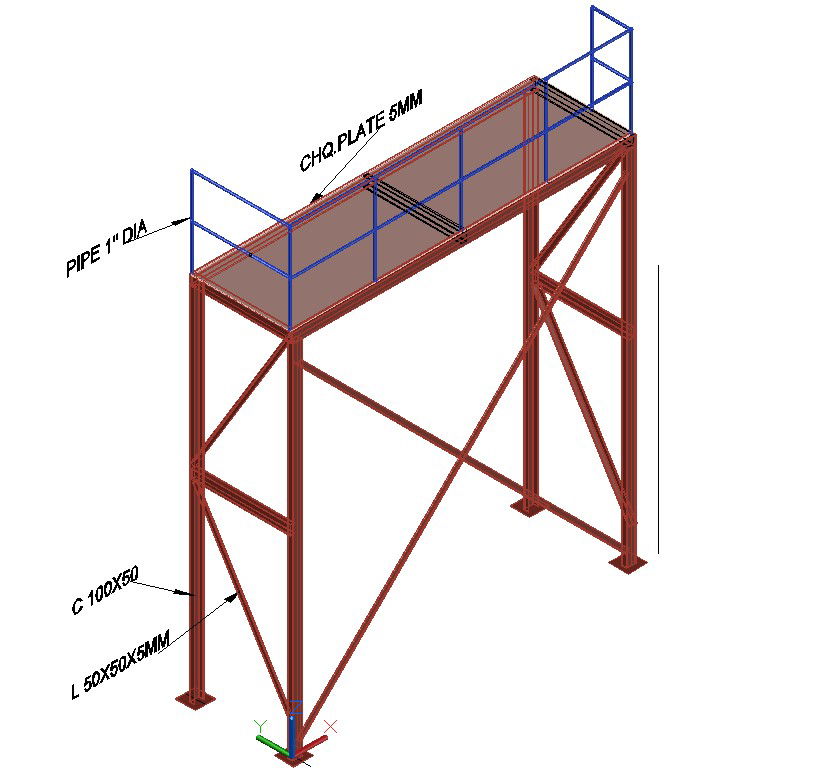

This 3D steel formwork structure drawing presents a detailed AutoCAD model showing steel bar column framework, channel sections, angle supports, and top plate arrangement. The design clearly illustrates a C channel 100 x 50 section, L angle 50 x 50 x 5 mm members, 1-inch diameter pipe railing, and a 5 mm thick chequered plate platform. The structural frame is supported on base plates anchored over the concrete floor area, ensuring load transfer and stability. Cross-bracing members are provided between columns to enhance rigidity and structural performance in the steel formwork structure. The 3D model displays vertical column alignment, diagonal bracing configuration, and platform guardrail detailing for safety. Connection joints between channel beams and angle supports are clearly represented to assist in fabrication and installation planning.
