Main Gate Elevation Design with Plan and MS Frame Structure Detail

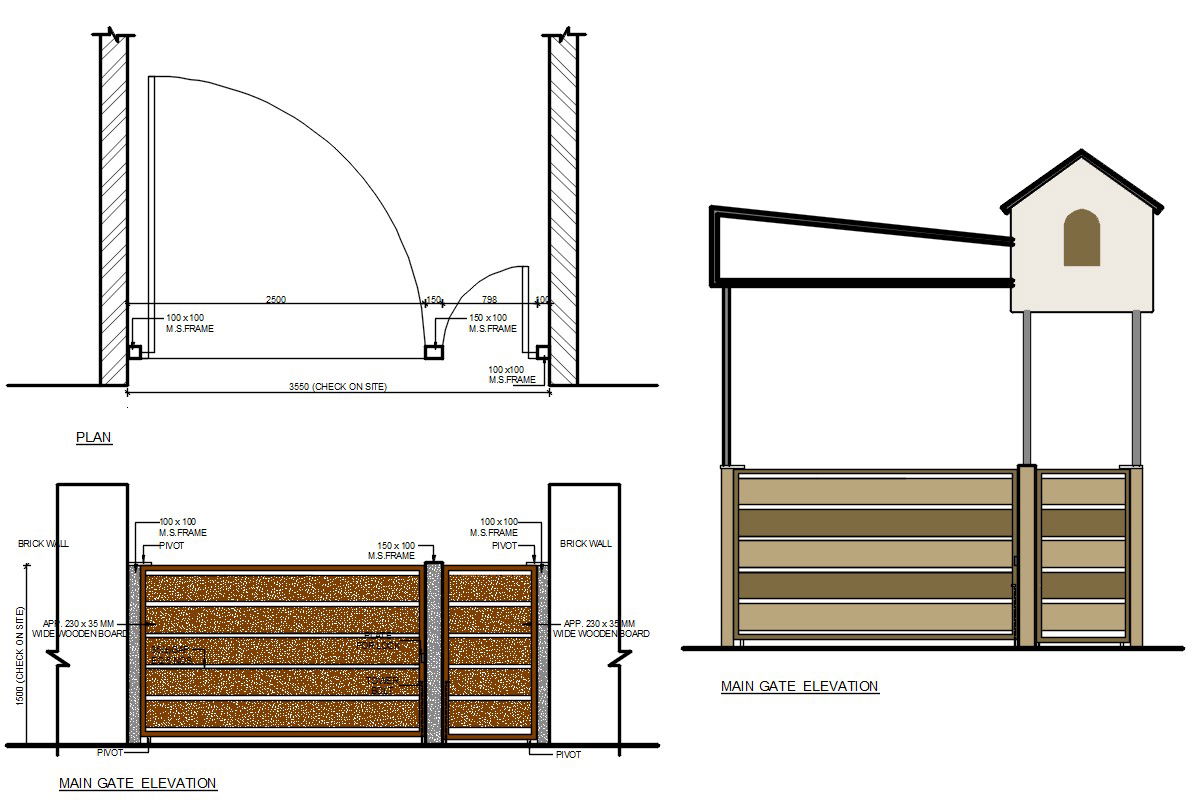

This main gate elevation design drawing presents a complete AutoCAD layout including front elevation and top view plan, with accurate dimension references. The plan indicates overall opening width of 3500 mm, check on site with individual shutter dimensions of 2500 mm and 798 mm. Structural frame members include 100 x 100 mm MS frame and 150 x 100 mm MS frame sections with a pivot arrangement fixed between brick walls. Gate panels are finished with approximately 230 x 35 mm wide wooden boards secured withina steel frame structure. All pivot locations and frame connections are clearly marked for fabrication clarity.
