RCC Footing Detail with Foundation Plan and Steel Bar Layout

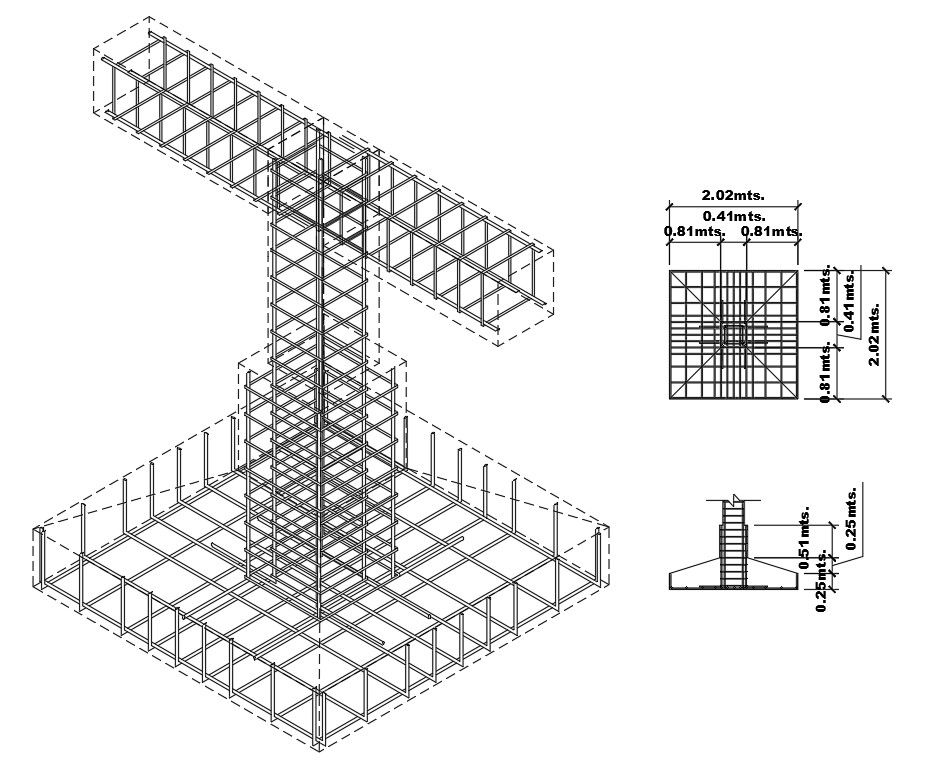

RCC Footing Detail drawing presents a complete foundation plan with reinforced concrete footing layout, column reinforcement cage, and steel bar detailing in clear AutoCAD format. The drawing includes plan view dimensions of 2.02 m by 2.02 m footing grid with intermediate spacing of 0.81 m and 0.41 m as marked. Section view illustrates footing thickness of 0.25 m anda column reinforcement rise of 0.50 m with proper concrete cover and base slab proportion. The steel bar arrangement is clearly drafted, showing horizontal and vertical reinforcement mesh for structural stability and load transfer.
