Wooden Window Frame Details with Plan Elevation and Section.

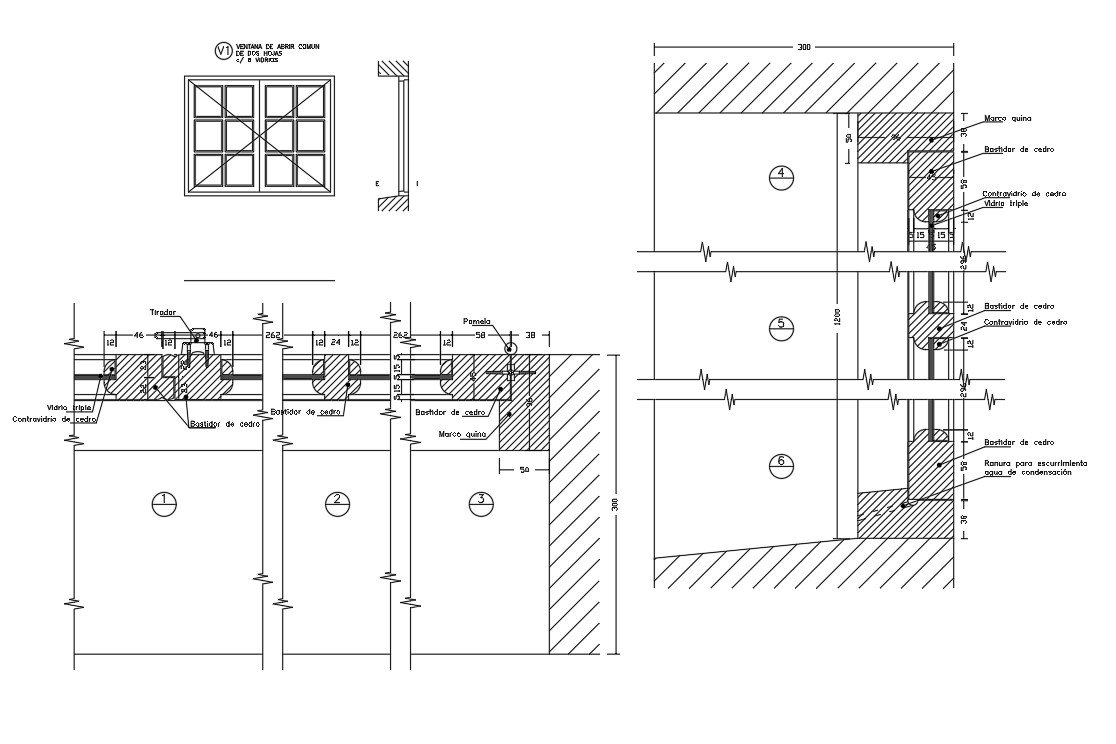

Wooden Window Frame Detail drawing presents a complete window plan elevation and section design in clear AutoCAD format for architectural construction reference. The drawing includes a front elevation of a wooden window with divided glass panels and frame grid, a detailed plan view layout, and sectional profiles showing frame thickness, shutter arrangement, and triple glass positioning. Section detail highlights cedar wood frame, counter frame, bead profile, handle fitting, and locking system with clear dimensional markings such as 300 mm overall height and 50 mm frame depth as indicated. Construction layers, including wall interface, sill support, and condensation drainage groove, are clearly illustrated for accurate site execution.
