Partition Wall Section Detail With Shelf Door And Hardware Design

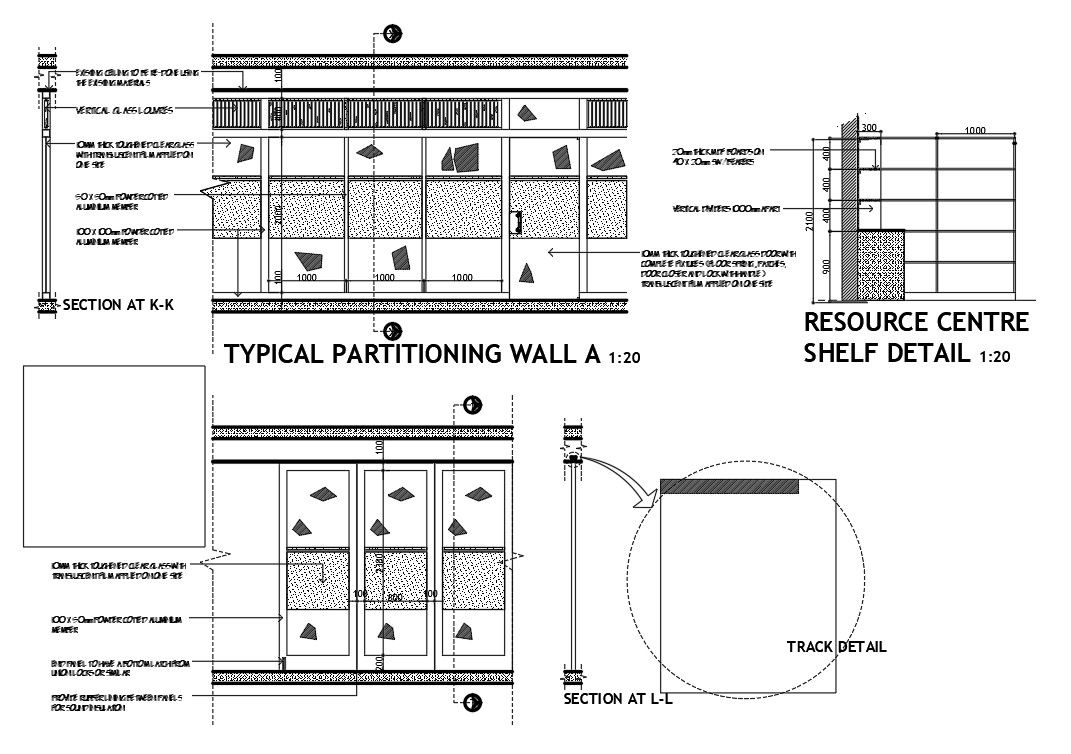

This wall section detail drawing shows a complete partitioning wall system designed for interior planning and functional space division. The drawing includes a typical partition wall layout with vertical framing members and modular panel spacing of 1000 mm for accurate alignment. Resource center wall elements are clearly illustrated with integrated shelf details showing depth projection fixing method and height coordination. Floor spring installation is detailed at the base with connection to door panels ensuring smooth door operation. Door patches door closer and lock with handle positions are clearly marked to support correct hardware placement and movement control.

The drawing also presents sectional views showing wall thickness material layering and surface finishes coordinated with shelf units. Track detail and fixing points are included to explain sliding or hinged door movement within the partition wall system. Elevation and section references help understand height dimensions such as 2100 mm door level and shelf alignment from finished floor. All elements are drawn with clear annotations dimensions and construction references suitable for interior execution. This drawing supports architects interior designers and builders in planning partition wall systems with integrated storage and door hardware using accurate AutoCAD based detailing.
