Modern Apartment CAD Drawing with 3BHK Floor Plan and Sections

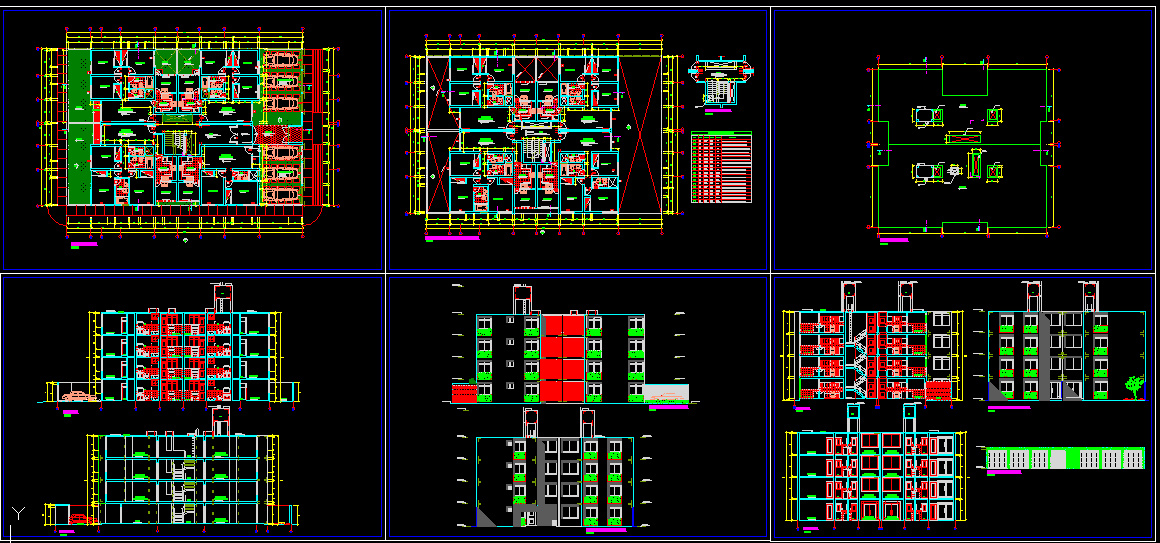

This modern apartment CAD drawing showcases a complete architectural layout in AutoCAD DWG format, featuring a well-planned 3BHK apartment design. The file includes detailed floor plans, sectional views, and front and side drawings that define the entire residential structure. Each cluster comprises four 3BHK houses, with all necessary dimensions, room arrangements, and circulation spaces precisely marked. The plan ensures a balanced and functional layout suitable for modern residential design.

The drawing also includes complete structural detailing with grid lines, column placements, and wall alignments. It is ideal for architects, civil engineers, and interior designers working on residential apartment projects. Each layout is presented with clear labeling for living rooms, bedrooms, kitchens, and balconies, ensuring easy interpretation for execution and presentation. This DWG file follows architectural drafting standards and can be used in AutoCAD, Revit, or SketchUp for modeling and rendering. Explore this well-drafted 3BHK apartment CAD drawing to understand efficient residential space design with complete working details.
