Modern Apartment AutoCAD Drawing with Parking and Floor Plans

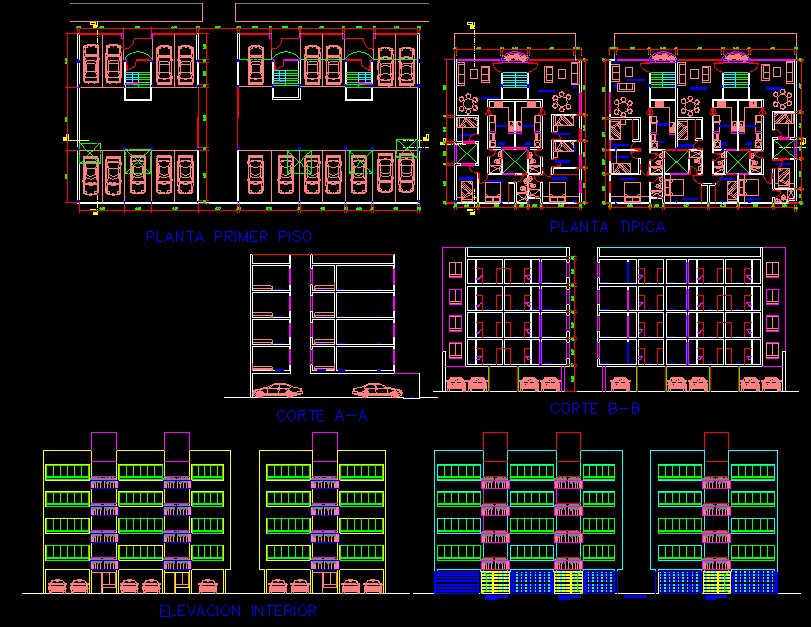

This apartment CAD drawing provides a complete architectural layout created in AutoCAD DWG format. The design includes detailed floor plans, sections, and elevation views of a modern residential building. Each level is precisely drawn with clear measurements, room layouts, and spatial organization for efficient construction and planning. The file also includes a well-structured parking layout, ensuring proper circulation and vehicle accommodation.

The architectural drawings depict both typical and first-floor plans, offering clarity in column placement, wall alignment, and space utilization. Elevations and sectional views illustrate façade treatments and internal height arrangements, making it suitable for design development and presentation. This DWG file is ideal for CAD architecture civil engineers, and builders who are designing residential apartments or multi-story housing projects. Compatible with AutoCAD, Revit, 3ds Max, and SketchUp, this drawing helps in conceptual planning, technical documentation, and layout visualization. It serves as a ready reference for professional use or educational projects related to apartment architecture.
