Security Cabin Design AutoCAD DWG with Elevation Section Plan

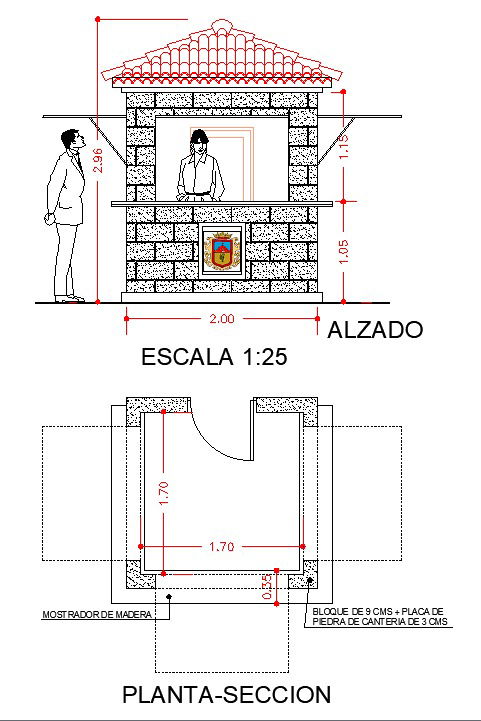

This security cabin design AutoCAD DWG drawing presents a detailed architectural layout, including elevation and plan section views prepared at scale 1:25. The structure shows an overall front width of 2.00 meters and a total height of approximately 2.50 meters. The internal clear space measures nearly 1.70 by 1.70 meters, providing an efficient working area for security staff. The drawing includes stone masonry wall detailing, 9 cm block construction with 3 cm stone cladding finish, and a wooden counter installation for monitoring activities. Roof detailing illustrates a sloped tiled roof system with layered construction for weather protection. All dimensions, annotations, and construction notes are clearly marked for site reference and execution accuracy. This security cabin design DWG file supports professional architectural drafting and project planning. The file also includes sectional representation showing wall thickness, counter placement, entrance door swing layout, and foundation alignment. Material layers, surface finishes, and structural proportions are defined to ensure durability and stability.
