This commercial textile ground floor DWG drawing provides a detailed and accurately measured layout designed for smooth workflow, production efficiency, and structural clarity. The plan features a 92 ft 6 in overall building length with a 40 ft front road line, offering ample access for goods movement. At the centre of the layout is a spacious production hall measuring 28 ft 7 in by 27 ft 0 in, positioned to support continuous textile operations. Supporting rooms include a saree inspection and folding room of 14 ft 6 in by 8 ft 0 in, an 8 ft 6 in by 8 ft 0 in store, and a larger 15 ft 0 in by 13 ft 7½ in storage area, designed for materials and finished products. The layout also incorporates functional workspaces such as 12 ft 3 in by 9 ft 6 in and 7 ft 0 in by 9 ft 10 in office rooms, along with a 12 ft 3 in by 8 ft 4 in general waiting area for staff or visitors. The central lobby, measuring 16 ft 0 in by 8 ft 3 in, ensures smooth internal circulation. Additional elements include a 5 ft 0 in by 4 ft 6 in puja room, 5 ft 6 in by 5 ft 11 in toilet, staircase zone, 8 ft by 8 ft sump with 8000 litre capacity, borehole location, window schedule, door openings, slab projection, and grid references essential for architects and engineers.

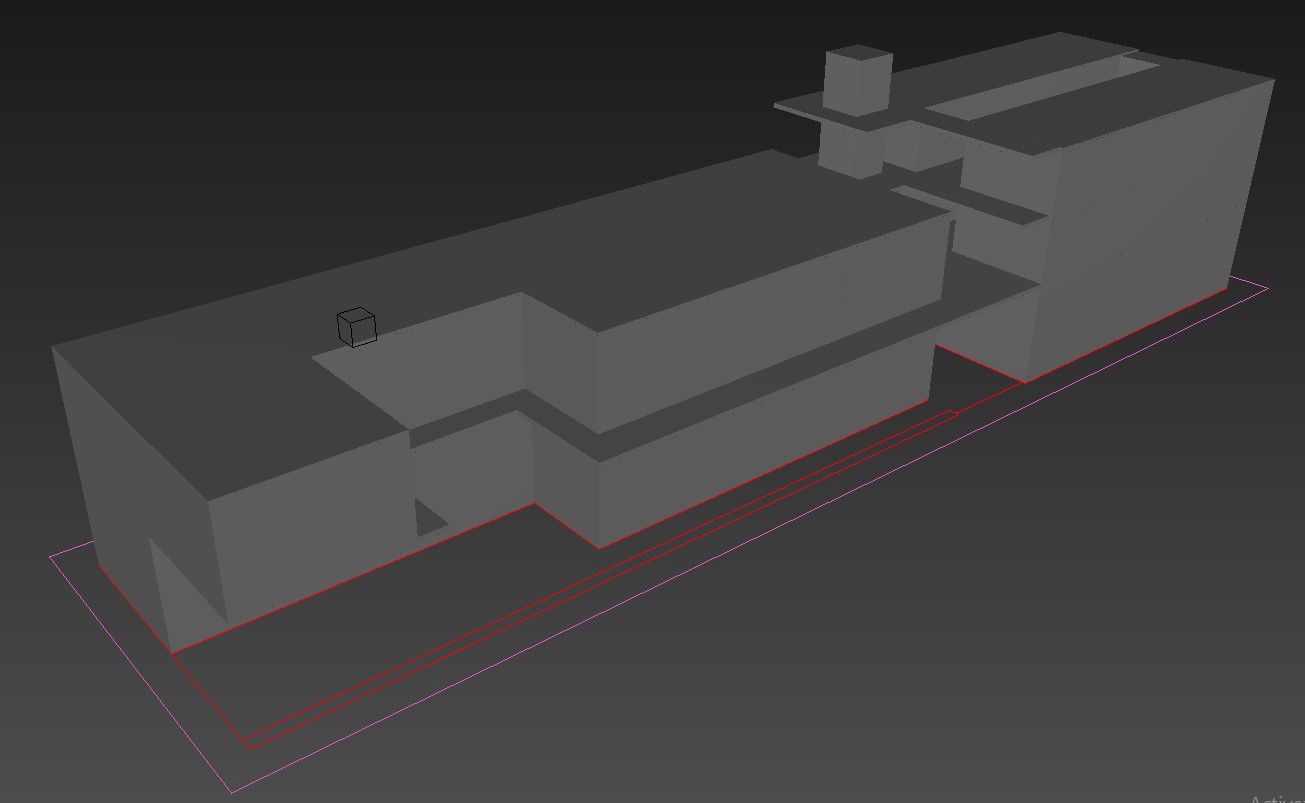

3D Model of Commercial Building Rendered in 3Ds Max Format files

akansha

Description

3d max

36 KB

3d Model

3D Commercial Building

Free

akansha
