50X20 South Facing 3BHK House Plan Drawing Design Layout Detail

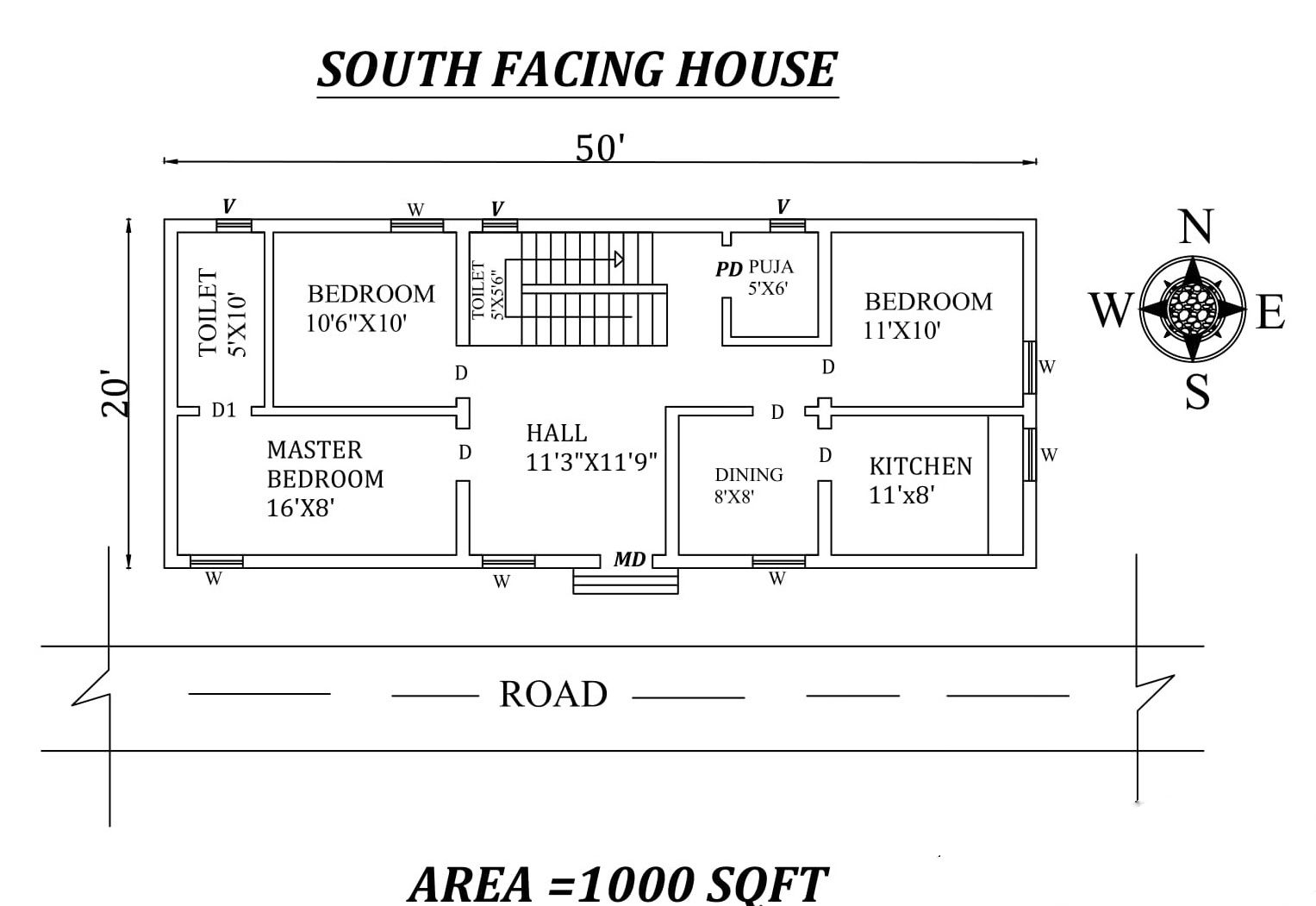

This architectural drawing presents a detailed 50X20 feet south-facing 3BHK house plan prepared according to residential planning requirements with organized room arrangements and layout references. The drawing includes a complete floor layout with three bedrooms, a living hall, a dining area, a kitchen, a toilet, a staircase, and a puja room placement. Visible room dimensions include a master bedroom of 16 feet by 8 feet, bedrooms of 10 feet 6 inches by 10 feet and 11 feet by 10 feet, a kitchen size of 11 feet by 8 feet, a dining area of 8 feet by 8 feet, and a hall size of 11 feet 3 inches by 11 feet 9 inches. The complete plot area shown is approximately 1000 square feet with organized interior planning references.

The house layout further includes organized technical references useful for architects, civil engineers, builders, and drafting professionals involved in residential development projects. Door arrangements, window positions, circulation spaces, and staircase layouts improve planning understanding and support practical implementation requirements. This AutoCAD drawing supports technical documentation, residential planning, and construction drafting with complete house plan information suitable for residential development projects.
