RCC Slab Detail with 23cm Brick Wall and Waterproofing Plaster

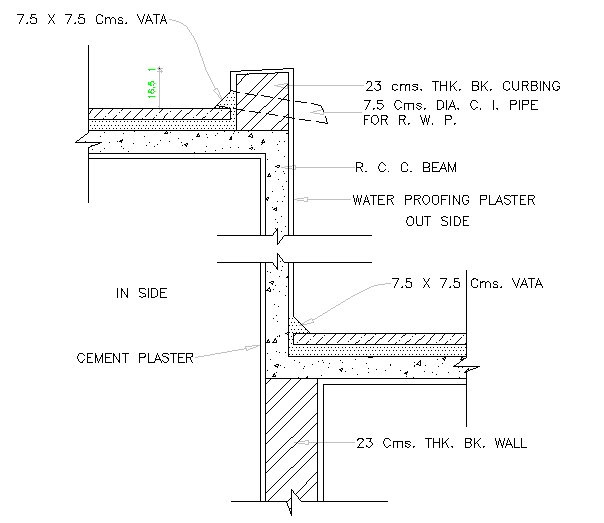

This RCC Slab Detail with 23cm Brick Wall and Waterproofing Plaster shows complete structural section information for construction reference. The drawing clearly illustrates the R.C.C beam connection with the slab, 23 Cms. THK. BK. WALL, and 23 Cms. THK. BK. CURBING is integrated at the roof edge level. It also includes 7.5 Cms. DIA. C. I. PIPE FOR R. W. P. placement for effective rainwater drainage. The outside waterproofing plaster layer and inside cement plaster finish are properly marked to ensure moisture protection and durability. All components are proportionally drafted with clear material identification for site execution.

This AutoCAD DWG file provides accurate slab section detailing suitable for residential and commercial structural documentation. The layout highlights beam depth alignment, brick wall thickness, curbing detail, vata 7.5 x 7.5 Cms. positioning, and rainwater pipe integration within the slab edge section.
