Industrial Chimney Design 4.43m Height Section Plan CAD Drawing

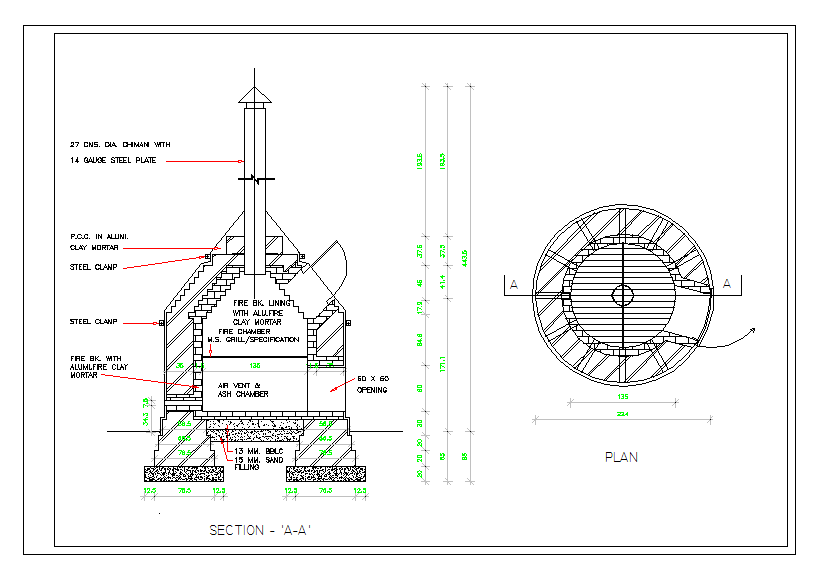

Industrial Chimney Design 4.43m Height Section Plan presents a detailed structural and sectional drawing prepared for industrial furnace and fire chamber applications. The drawing includes section A A and plan view with complete dimensional references showing total height 4434 mm and circular base diameter 204 mm. It illustrates fire brick lining with alumina clay mortar, steel clamp supports, ash vent and ash chamber, fire chamber grill specification, and 60 x 60 mm opening detail. The foundation layer shows 13 mm brick lining with 15 mm sand filling for stable support and heat resistance.

The plan clearly defines internal circular geometry with 135 mm inner dimension and sectional reinforcement layout for structural stability.
