Residential Step Detail Plan 12m x 8m Level Structural Drawing

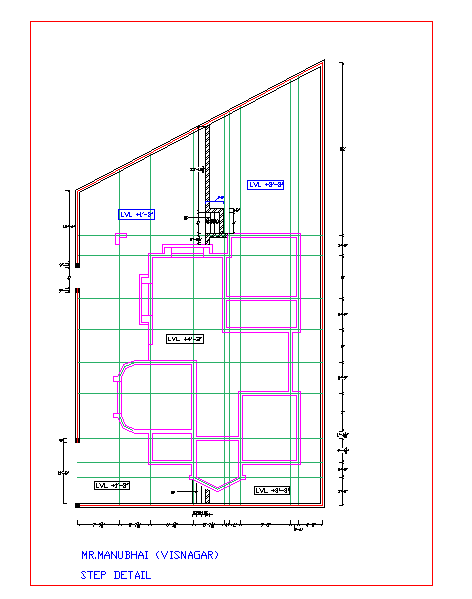

Residential Step Detail Plan 12m x 8m Level Drawing presents a detailed architectural layout showing internal level variation and step arrangement within a 12m x 8m residential footprint. The drawing clearly indicates multiple-level references marked with LVL notations, highlighting finished floor height differences and transition steps between rooms. Wall alignments, structural grid lines, and boundary dimensions are precisely drafted to maintain accurate positioning. The step detail is centrally integrated within the plan to connect different room platforms while maintaining circulation continuity and spatial balance.

The plan illustrates a stepped floor configuration, room outlines, internal partition layout, and level marking coordination across the entire structure. Height variation is visually represented through clear sectional indication and dimensional alignment along the vertical edges.
