Wall Footing Design Section with Depth and Plaster Material Detail

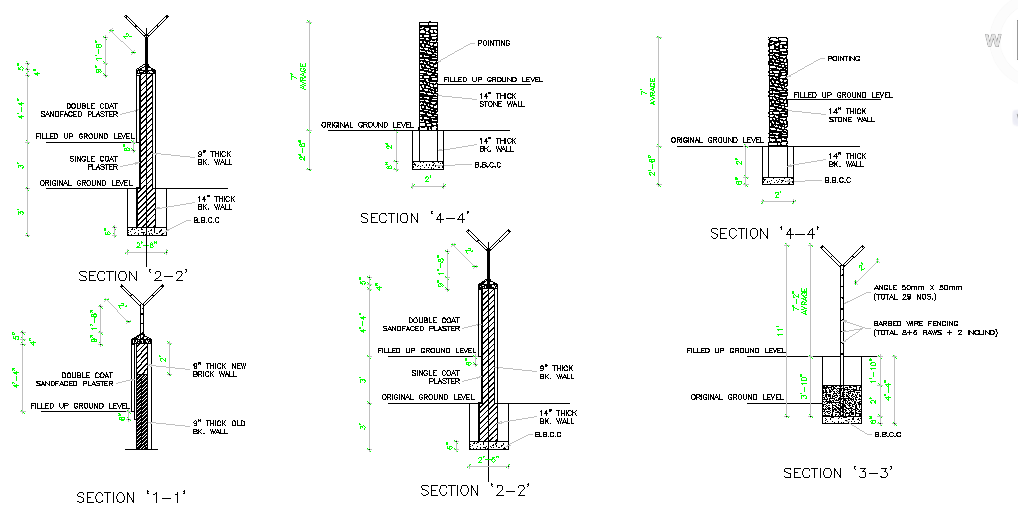

Wall Footing Design drawing in AutoCAD DWG format presenting detailed footing section with depth dimension and material specification in mm. This Wall Footing Design includes multiple section views showing brick wall thickness such as 9 inch brick wall and 14 inch stone wall, B B C C layer, original ground level, filled up ground level, plaster finish, and foundation base width. The section detail clearly defines footing depth, wall alignment, double coat sand faced plaster, single coat plaster, and structural support arrangement.
