Office Foundation Detail Drawing in AutoCAD DWG Format layout

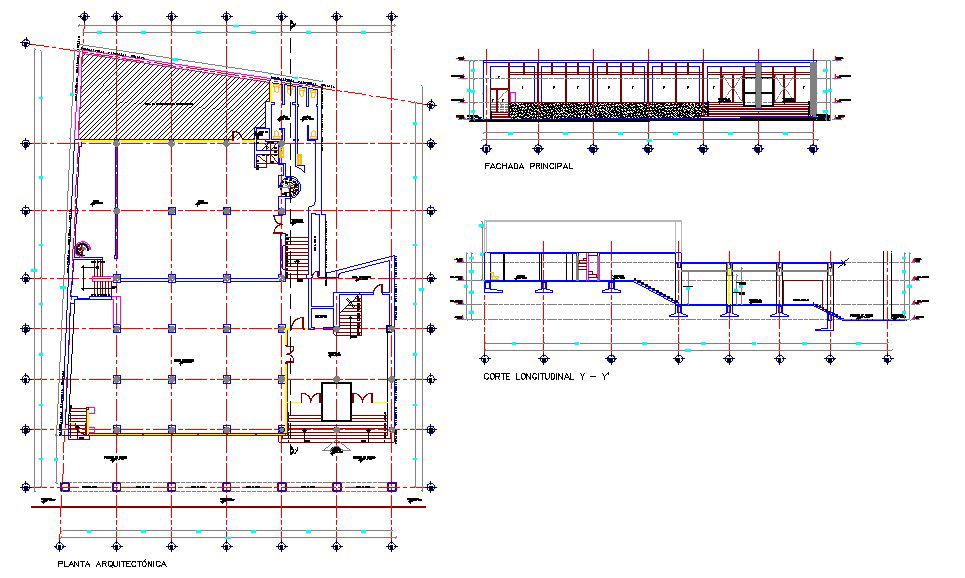

Office foundation layout plan with section detail presents a complete architectural and structural drawing set, including foundation layout grid, column positioning, and longitudinal cutting section Y Y. The plan arquitectonica shows structural grid spacing, column base alignment, footing layout, and slab support configuration coordinated with wall lines and internal stair positioning. Foundation base dimensions are arranged systematically across the grid, ensuring uniform load distribution. The facade principal elevation is included to illustrate exterior alignment and plinth level reference in relation to the structural base.
