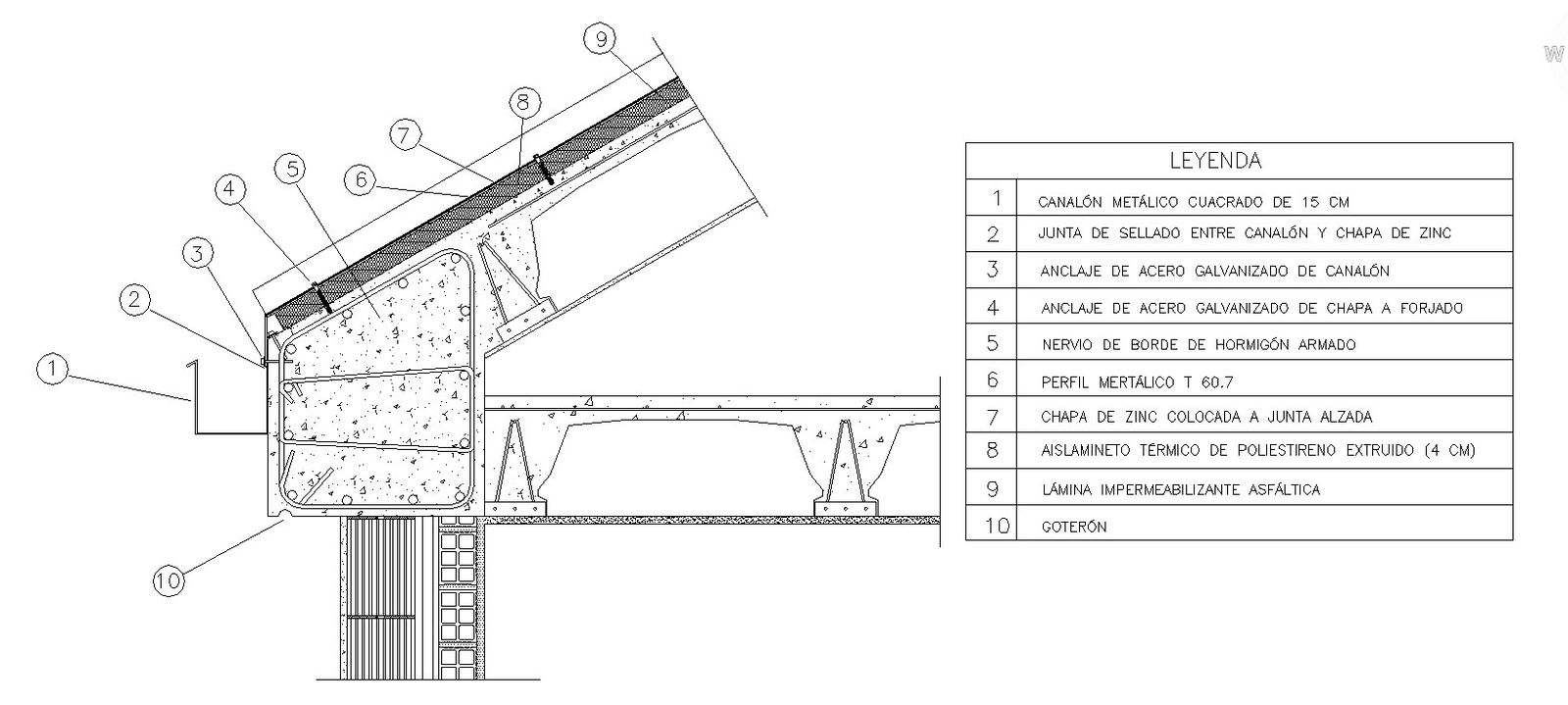

Pitched Roof DWG Detail 15cm Metal Canalon with Zinc and Insulation

Enhance your architectural and construction projects with this detailed Pitched Roof DWG file, including precise measurements and full material specifications. The drawing features a 15 cm metal channel, sealing board between the channel and zinc plate, galvanised steel anchors, concrete edge ribs, T 60.7 metal profiles, zinc sheets at raised joints, 4 cm extruded polystyrene thermal insulation, asphalt waterproofing membranes, and drainage details. Each element is carefully drafted for accurate representation in AutoCAD, Revit, 3D Max, Google SketchUp, and other CAD software, ensuring seamless integration into your building designs.
