Reinforced Concrete Longitudinal Beam Plan 600mm Rebar Layout

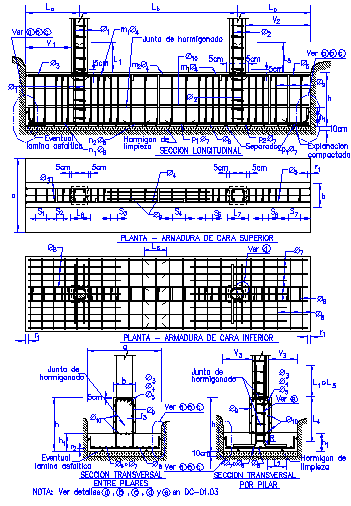

This AutoCAD drawing presents a detailed longitudinal beam plan for a 600mm concrete beam with complete rebar layout information. The beam reinforcement drawing includes top and bottom bar arrangement, stirrup spacing, pillar junction detailing, expansion joint connection, and concrete cover dimensions. Clear sectional views illustrate the 600mm concrete beam section detail with transverse and longitudinal reinforcement distribution. The reinforced concrete beam rebar layout plan also highlights support conditions, foundation interface, and alignment references. This concrete beam drawing ensures accurate structural coordination through precise measurements, annotated levels, and reinforcement specifications for construction and execution.
