Electrical pole Upper arm and lower arm connection details, Download DWG file details

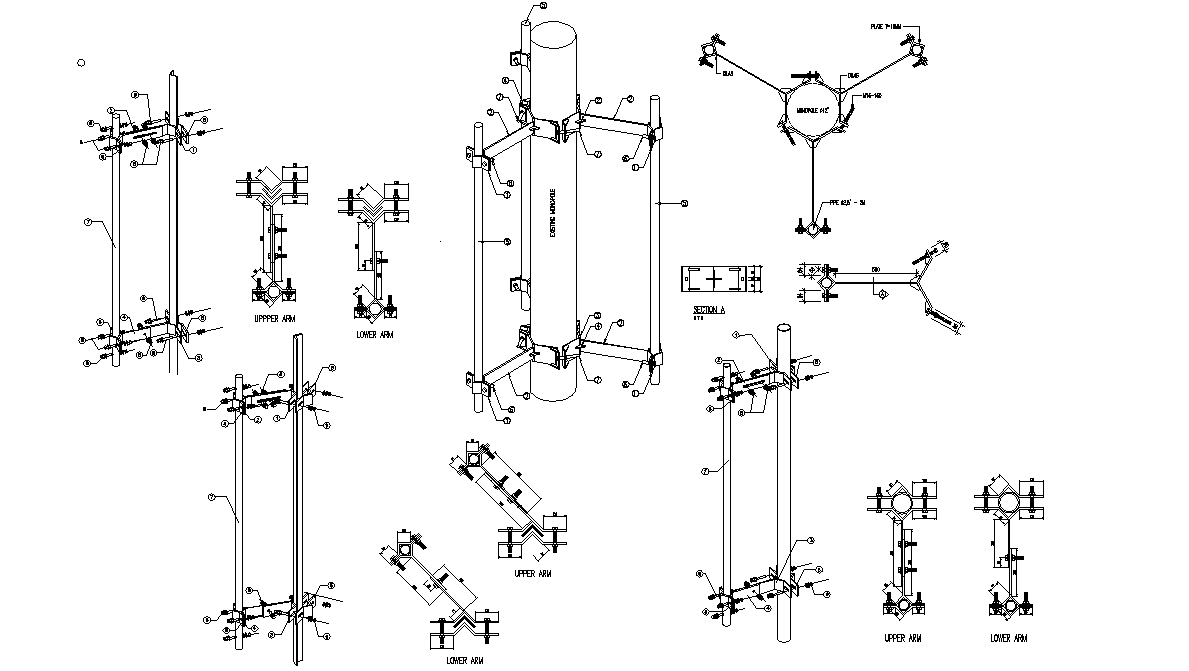

Autocad Drawing file shows the details of existing electrical pole upper arms and lower arms connection and parts details, the screws and bolts are attached in both upper and lower arms to fix on the electric pole. The top monopole view side view of the pole section is also available in this drawing. Download Autocad DWG file.

File Type: DWG File ID: 160095
