RCC Gate Detail Drawing with Elevation and Section Plan design

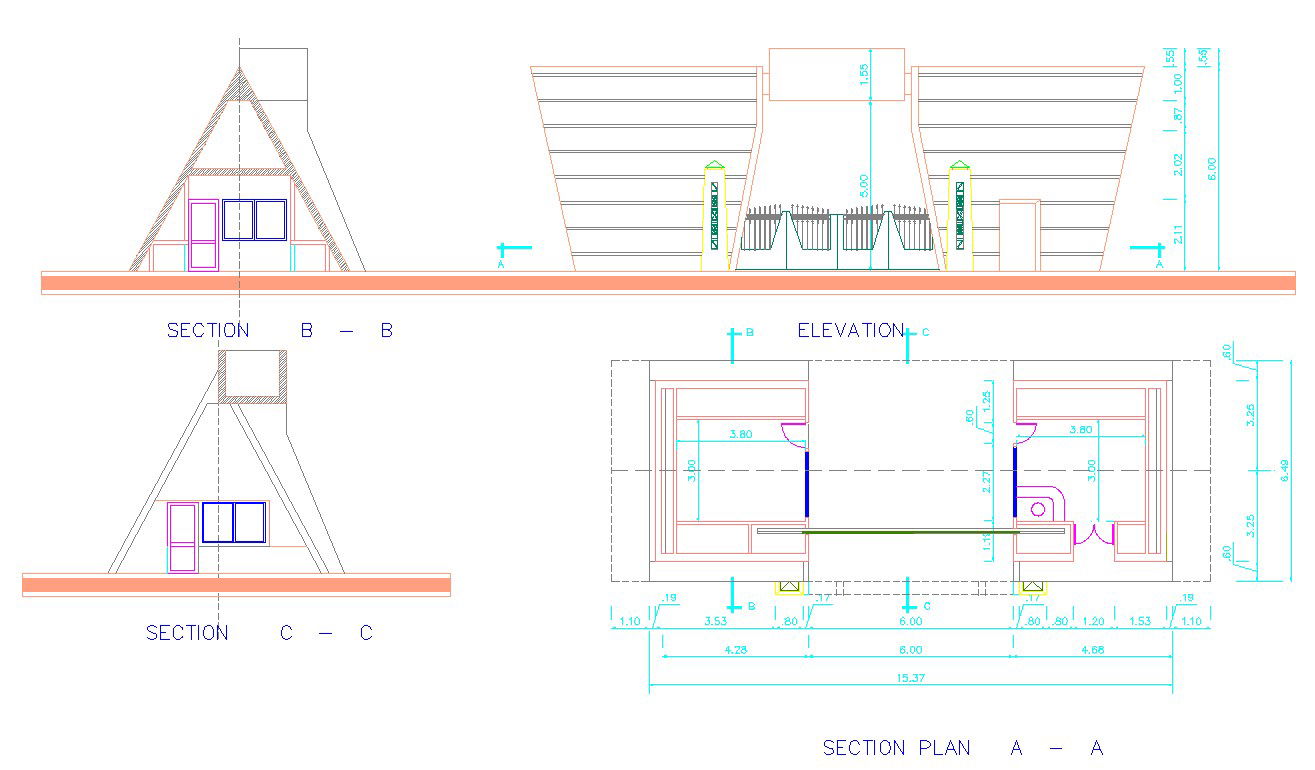

RCC Gate Detail Drawing with Elevation and Section Plan is a complete AutoCAD DWG file presenting detailed elevation, section B B, section C C, and section plan A A with accurate structural dimensions. The drawing illustrates a reinforced concrete frame, inclined side walls, roof slab profile, gate opening width, column size, beam depth, and foundation layout with clearly marked levels and measurements. All horizontal and vertical dimensions, including overall width 15.37 m, central span 6.00 m, and height 6.00 m, are defined for precise construction reference.
