Foundation Plan Drawing with Plan, Section and Cross Section Details

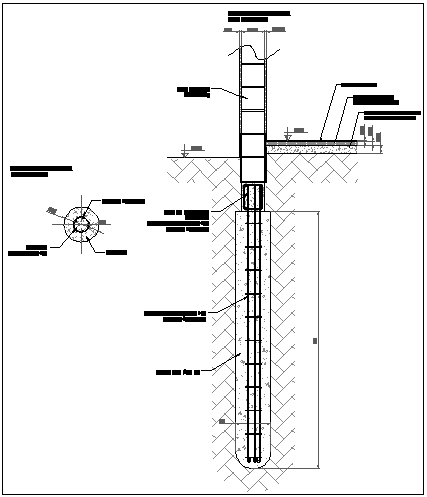

Foundation plan drawing showing complete plan, section, and cross section details for accurate building construction. The drawing highlights footing dimensions, column placement, and depth alignment to ensure structural stability. Detailed sectional views illustrate reinforced concrete layout, excavation depth, bedding layer, and base plate positions. Cross section details depict the connection between foundation, columns, and ground, including reinforcement bar placement, anchor points, and compacted soil layers.

This foundation plan provides all measurements needed for construction verification and coordination with architectural and structural drawings. Each section is dimensioned to show footing width, column size, depth, and reinforcement spacing.
