30000 L Fuel Storage Tank 9m x 2.4m Side and Section Drawing DWG File

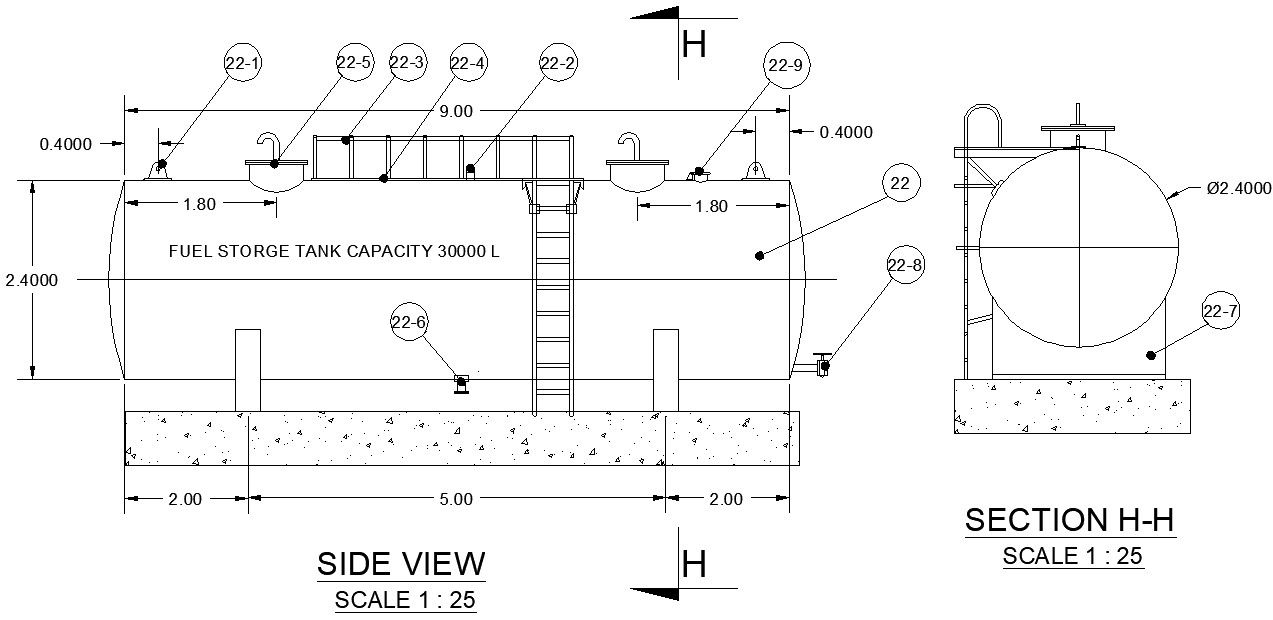

Download the detailed 30000 L Fuel Storage Tank AutoCAD DWG file featuring accurate 9.00 m overall length and 2.40 m tank diameter dimensions. This 2D CAD drawing includes complete side elevation, back section H H, and sectional details with clearly marked measurements such as 1.80 m top spacing, 0.400 m offsets, and 2.00 m plus 5.00 m plus 2.00 m foundation layout. The drawing highlights ladder positioning, manhole placement, support base structure, circular section profile of 2.400 m diameter, and reinforced concrete foundation detailing. Every structural and elevation component is precisely drafted for professional execution and project documentation.
