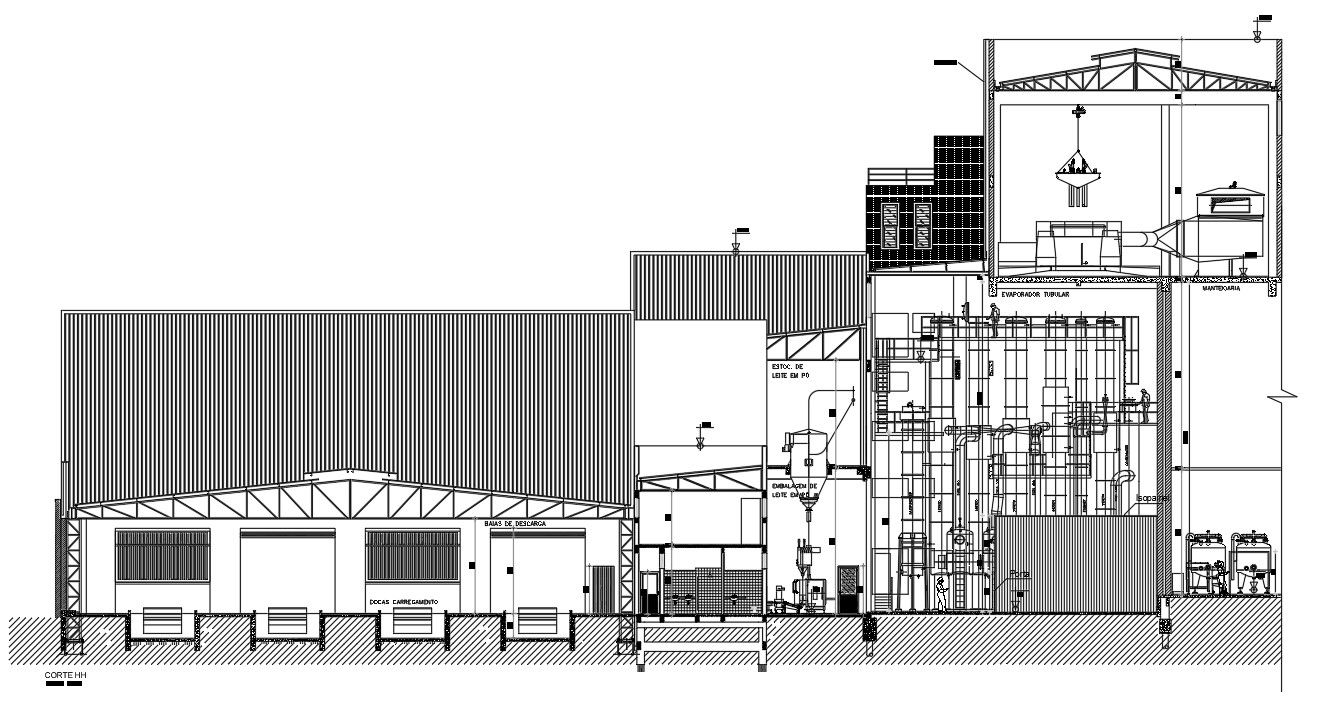

Autocad drawing has gives the sectional details of a factory. The section gives the details of the dimension of the factory , height of the factory etc. The cut section gives the detail of the toilet provided in the factory the toilet roof is below the roof level of the factory. The size of the doors and the shutter provided for the factory are given in detail in the drawing. All the machinery details, dimensions of the machinery are given in detail in the drawing. The factory is made of steel truss model the dimensions of the truss are also provided in the drawing. The gantry girder used in the factory and the detail of the gantry girder also shown in the drawing. Thanks for Downloading AutoCAD DWG and other CAD program files from our website.
