Bevel Gear 36T and Bevel Pinion gear Section detailed drawings are given in this CAD DWG file.Download the AutoCAD 2D DWG file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

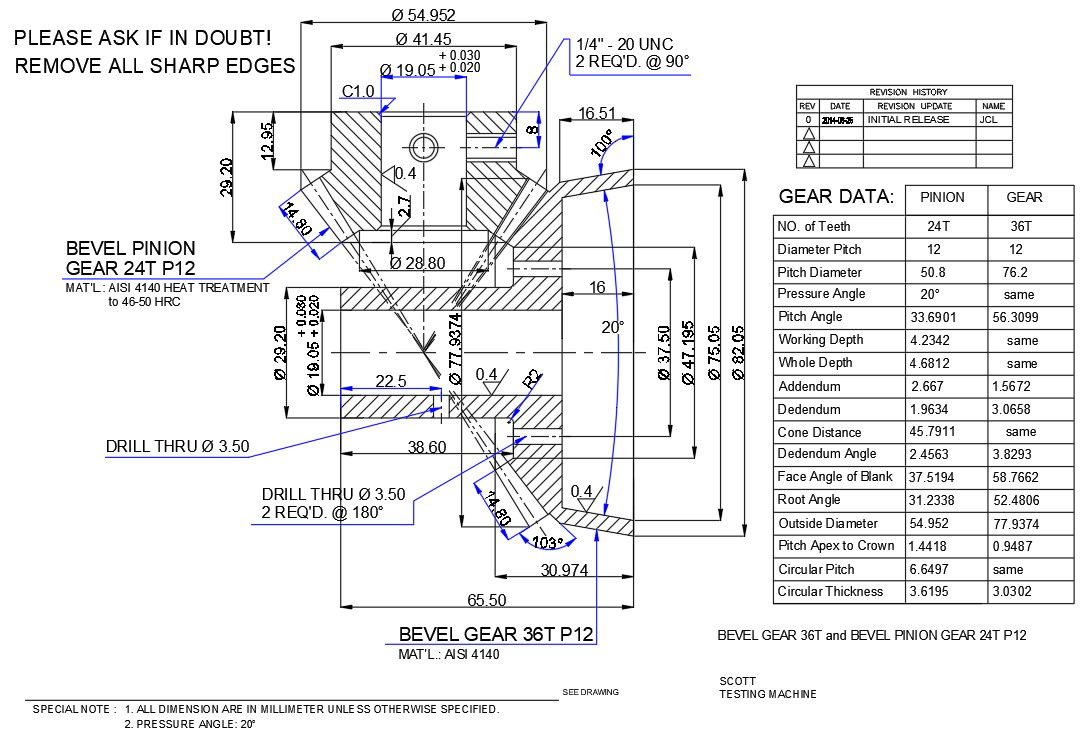

Bevel Gear 36T and Bevel Pinion gear Section detailed drawings are given in this CAD DWG file. The drawing file shows the Clear section details of the Bevel gear. Dimensions are clearly mentioned in this section DWG Drawing File. Download the AutoCAD 2D DWG file. Thank you so much for downloading AutoCAD DWG 2D drawings from the cadbull website.
File Type:
DWG
File Size:
160 KB
Category::
Mechanical and Machinery
Sub Category::
Mechanical Engineering
