2D Autocad drawing file gives the detail of the plan elevation and sectional detail of pergola. Download the AutoCAD Drawing file.

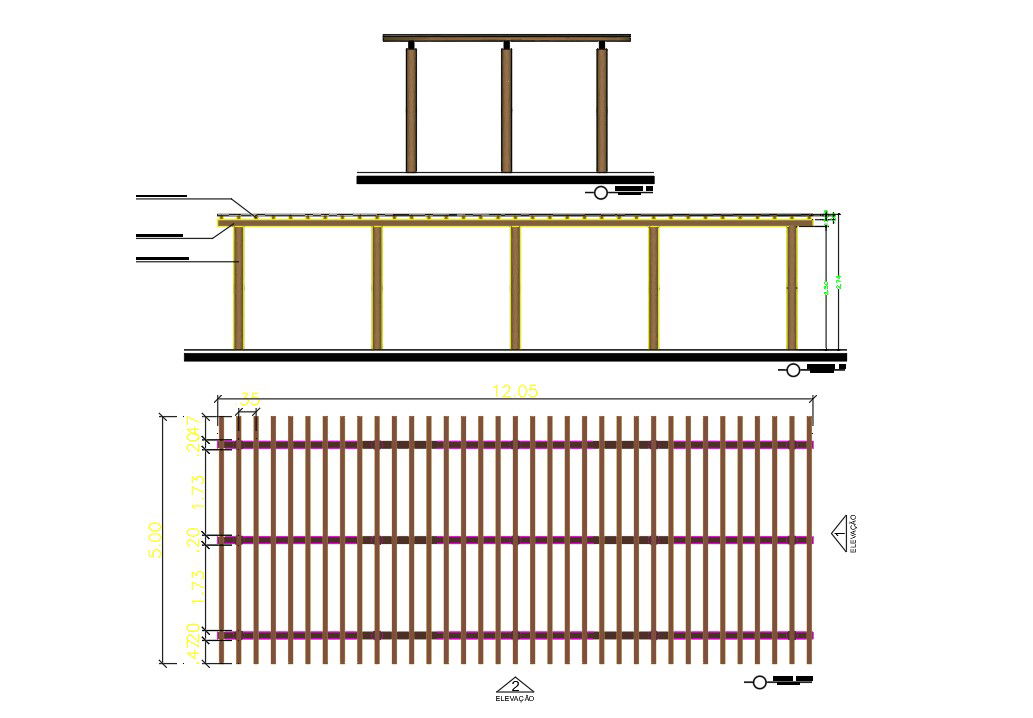

2D Autocad drawing file gives the detail of the plan elevation and sectional detail of pergola. The plan drawing given the dimension of the pergola the length of the pergola is 12.05m and the width is 5.00m, the width of the pergola beam is 200mm, the distance between each beam is 350mm, and the distance between the longitudinal beam is 1.73m. The height of the pergola roof is 2.74m , the pillar and the roof woods are made of varnished eucalyptus wood , the detail are given in the drawing. The elevation detail is given in the 2D drawing. Thanks for Downloading AutoCAD DWG and other CAD program files from our website.
