3D CAD DWG Drawing of the proposed reels assembly 266.75X209.55 Elevation drawing is given in this CAD DWG file. Download now.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

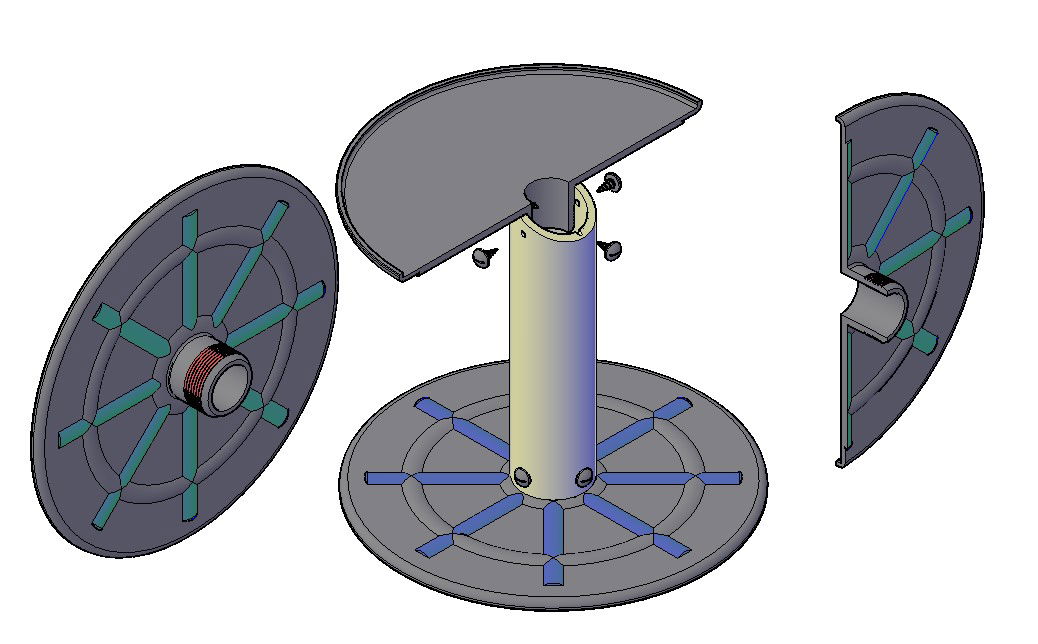

3D CAD DWG Drawing of the proposed reels assembly 266.75X209.55 Elevation drawing is given in this CAD DWG file. The drawing shows the proposed plastic flange, metal screw, carton tube. Three side view is clearly given. Download the AutoCAD 2D DWG file. Thank you so much for downloading AutoCAD DWG 2D drawings from the cadbull website.
