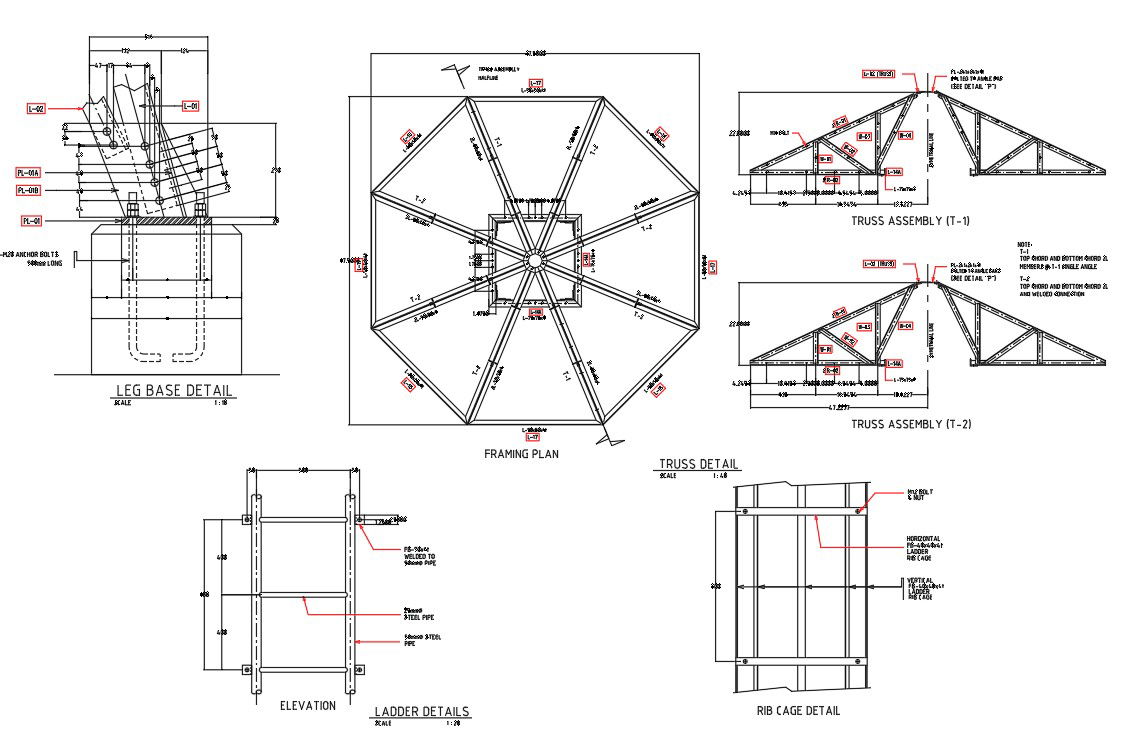

2D AutoCAD drawing file gives the Details of Plan and Steel Truss Assembly. This DWG file having steel plate and Plate connection details available. Structural steel trusses are the metallic support mechanism, found under the roof to provide support. Generally, roof trusses are made out of two materials, steel and timber. Trusses made out of steel structures are a common choice among commercial, industrial and large residential complexes.Typical detail of a steel truss, which is considered as a revolute joint. Historical detail of a steel truss with an actual revolute joint. A truss is an assembly of beams or other elements that creates a rigid structure.The drawing having the steel fabrication , different materials used ,bolt size,cut sections,steel pipe diameters,reinforcement details,parts of each truss description are clearly explained in this Drawing.Download the AutoCAD DWG file.Thank you so much for downloading AutoCAD files from cadbull website.
