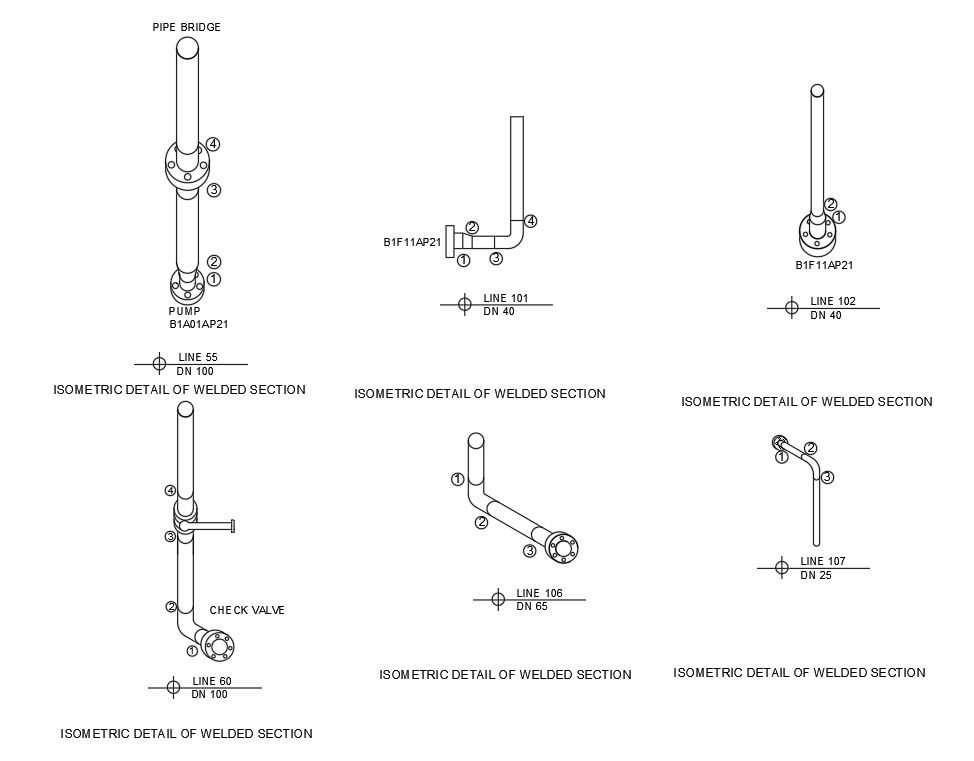

Details of welded section given in 3D model. Download the DWG file.


Description

Details of welded section given in 3D model. A check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are one of the few self-automated valves that do not require assistance to open and close. Thanks for downloading Autocad DWG and other CAD program files from our website.




File Type: DWG File ID: 165107

Uploaded by:


Marvel
United-States
