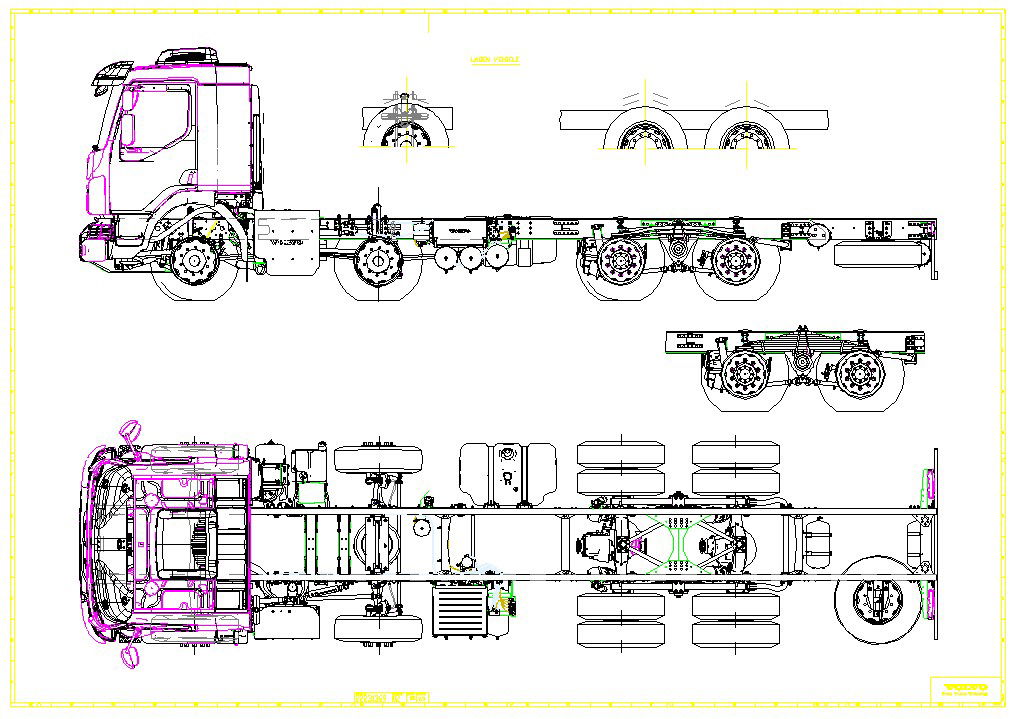

Heavy Vehicle Block Detail with Top View and Side Elevation.

This AutoCAD DWG file presents a heavy vehicle block detail including top view and side elevation with precise dimensional references for drafting accuracy. The drawing clearly defines chassis beam alignment axle arrangement sectional wheel views and mounting bracket positions distributed across the full vehicle length. The top view illustrates engine placement transmission housing fuel tank position suspension layout and wheelbase spacing measured with center line references. The side elevation highlights cabin height ground clearance frame depth rear overhang dimension and structural framework distribution aligned with axle positions.
