Louvers type of head quaters(Smart village) is given in the 2D Autocad DWG drawing file. Download the Autocad DWG file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

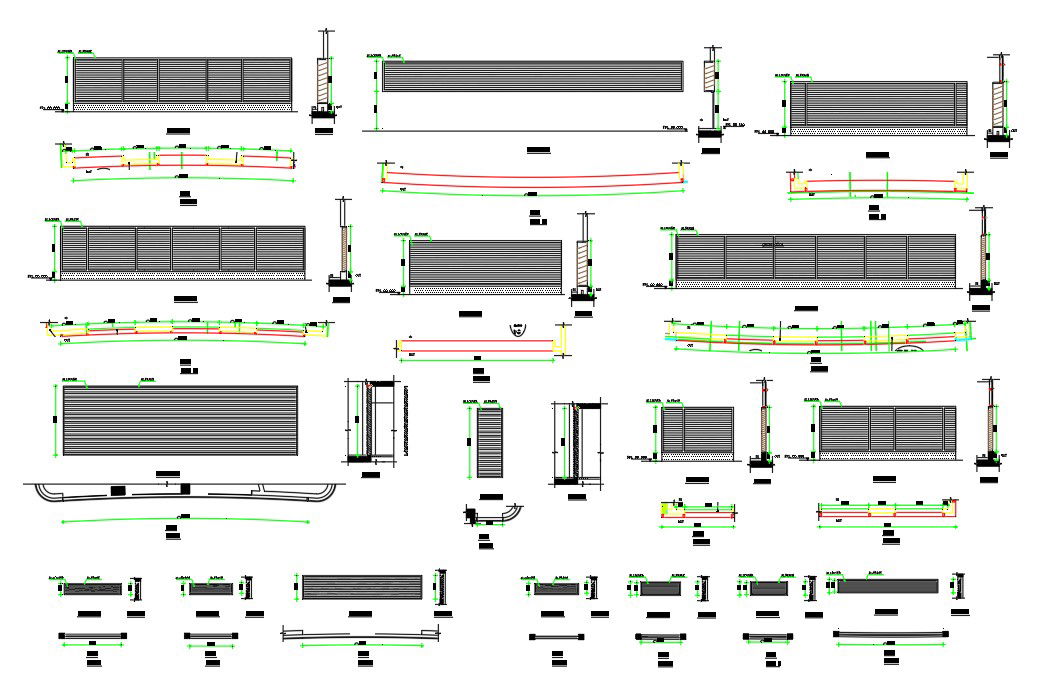

Louvers type of head quaters(Smart village) is given in the 2D Autocad DWG drawing file. In this file there are 17 types of plan given. For each plan the section and elevation were given in this drawing file. Each plan having different length and breath. Outer panel is given with frame and inside panel is louvers. Thank you for downloading the cad file and other program file from our website.
File Type:
DWG
File Size:
2.7 MB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#Section#Elevation#Louvers#Frame#Plan#Autocad file cad file from our website.
