A roof house plan detailed section is given in this AutoCAD DWG File. Download the AutoCAD Drawing file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

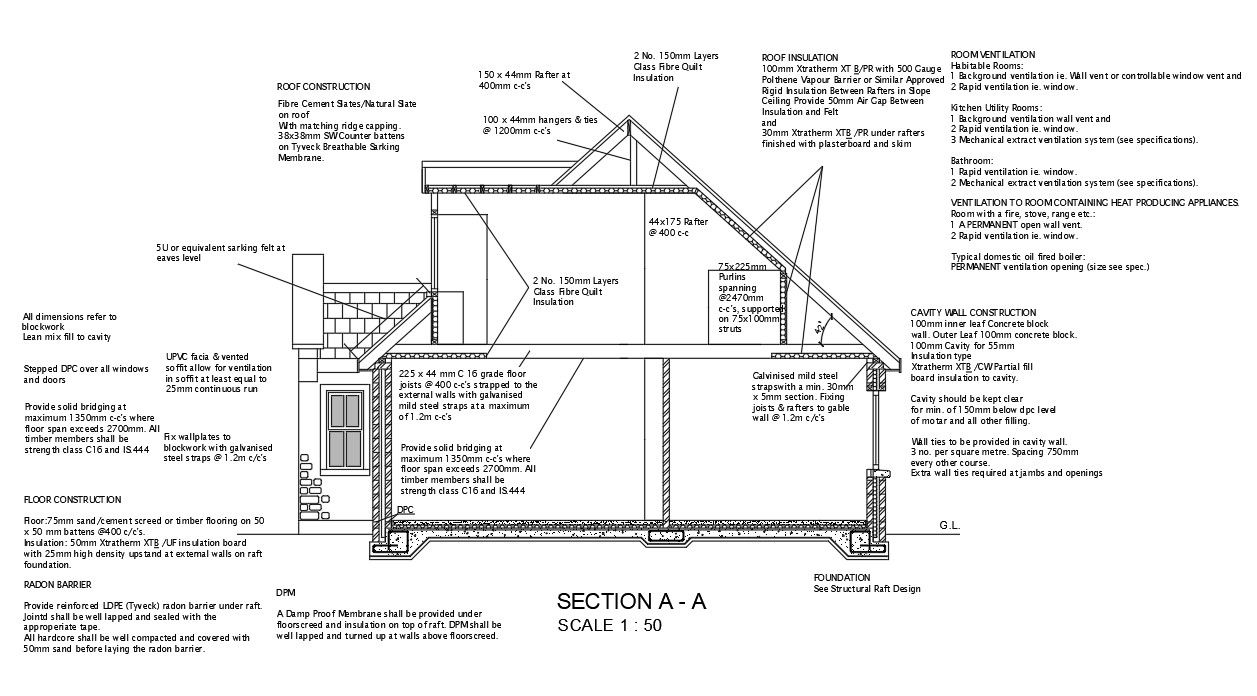

A roof house plan detailed section is given in this AutoCAD DWG File. In this plan roof insulation, room ventilation details, cavity wall construction details, and floor construction details are available. The Doors and windows of the house are shown in this drawing. The section and elevation design looks beautiful in this Drawing file. Download the AutoCAD Drawing file. Thank you so much for downloading house plan drawings from our cadbull website.
File Type:
DWG
File Size:
61 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#section details#longitudinal section details#section plan#structural details#civil#roof house plan detailed section
