Typical stairs details of section and elevation of hotel building are given in the autocad dwg drawing file.Download the Autocad DWG drawing file.

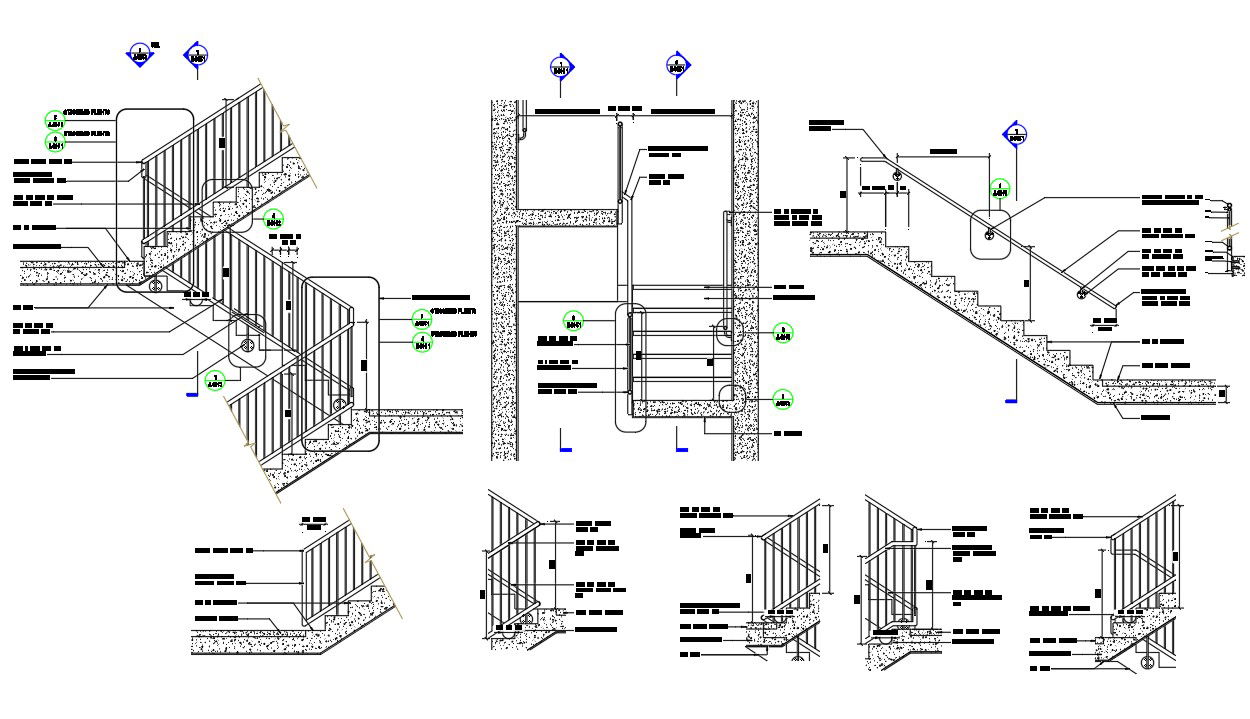

Typical stairs details of section and elevation of hotel building are given in the autocad dwg drawing file. In this file shows the material which is used for stair case constructions. 50mm dia mild steel, handrail, smooth radius bend, 20mm dia mild steel rod bracket, 100mm dia, 6mm thickness of mild steel base plate, base plate with counter sunk expansions bolt fixing to stair structure, bottom rail, nom chamfer, baluster, various dia of mild steel, steel nosing and ptd rc structures are mentioned clearly in this drawing file. Thank you for downloading the autocad 2D DWG drawing file and other CAD program files from our cadbull website.
