Column Reinforcement Foundation Plan CAD Drawing with Footing Details

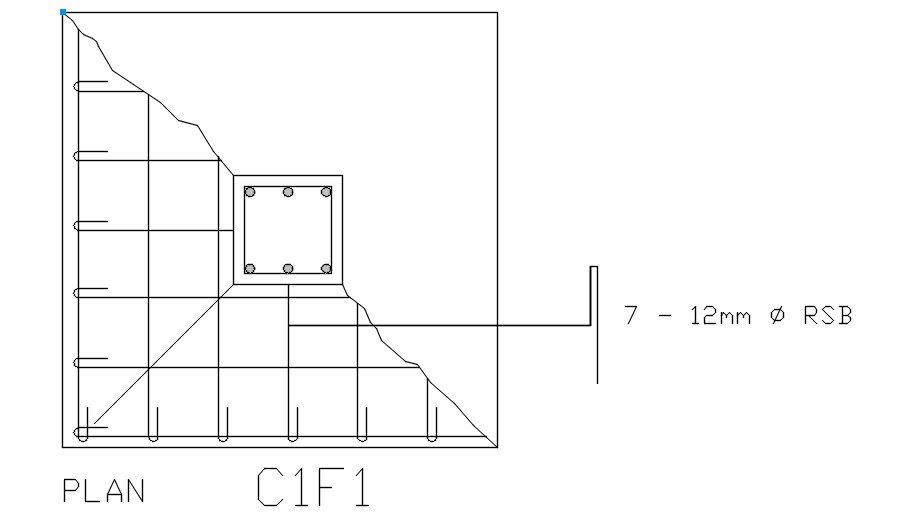

This column reinforcement foundation plan AutoCAD drawing presents a clear and technical 2D layout prepared for structural foundation detailing. The CAD file includes a detailed footing plan with column base positioning, reinforcement bar layout, and dimensional references. Reinforcement notation, such as 7 numbers of 12 mm diameter RSB, is clearly marked to indicate steel bar quantity and size. The footing geometry, cover offsets, and bar distribution are shown in plan view to support accurate reinforcement placement. All edges, grids, and internal lines are drafted to scale for construction-level clarity.

The drawing also includes typical section references that explain the relationship between column, footing, and reinforcement arrangement. Dimension strings are provided to indicate footing size, column base alignment, and reinforcement spacing. Section callouts and annotations help in understanding load transfer and structural behavior at the foundation level. This AutoCAD DWG file is useful for civil engineers, structural engineers, architects, and builders working on residential and commercial foundation projects. The drawing supports reinforcement detailing, quantity estimation, and construction documentation and can be accessed through a Cadbull subscription for professional use in AutoCAD, Revit, 3D Max, and Google SketchUp workflows.
