Sill support and Separate beam layout section and elevation details are given in this AutoCAD 2D DWG drawing.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

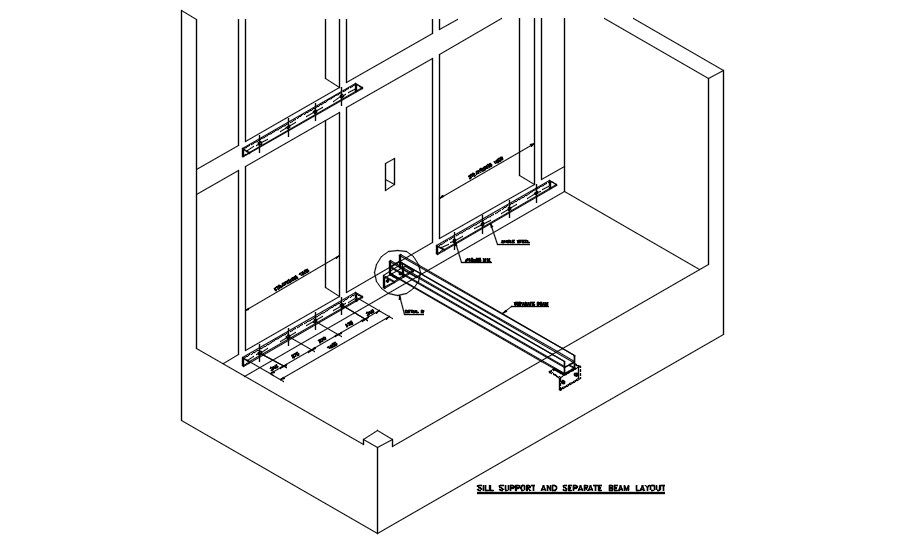

Sill support and Separate beam layout section and elevation details are given in this AutoCAD 2D DWG drawing. Sectional details are clearly given in this drawing file. Separate beam and steel plate sizes, Sill support, angle steel is given in this DWG file. This drawing file is useful for civil and structural engineers. Download the AutoCAD 2D DWG file. Thank you so much for downloading the DWG file from the cadbull website.
File Type:
DWG
File Size:
203 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#mild steel plate#astm a36 steel#steel plate for sale#checker plate steel#ss plate#astm a516#Sill support and Separate beam layout section and elevation details
