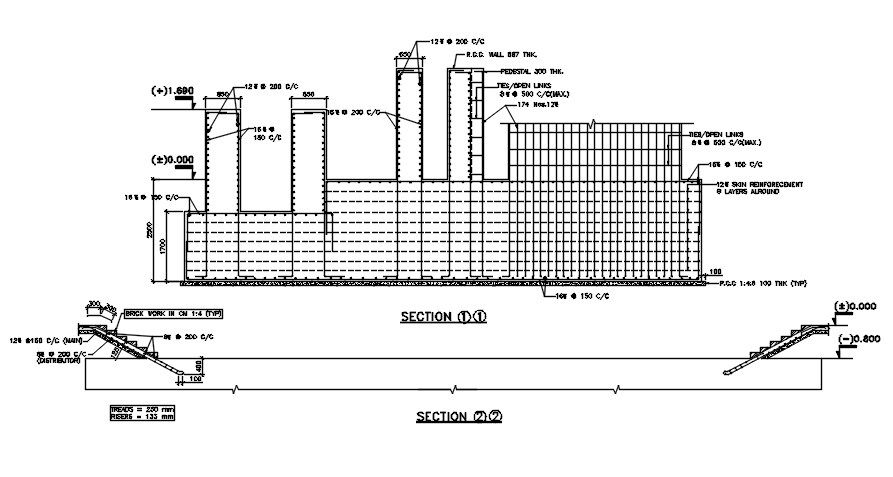

Proposed Rehabilitation of WTG foundation details are given in this Autocad 2D DWG drawing file. Download the 2D Autocad DWG drawing file.

Proposed Rehabilitation of WTG foundation details are given in this Autocad 2D DWG drawing file. The proposed steel plate welded to the embedded steel with 30mm thickness. It was provided to outside and inside. 45 nos of 25mm thickness plates are provided. Length and depth are mentioned clearly in this drawing file. Thank you for downloading the Autocad file and other CAD program files from our website.
