Cross section of plinth beam is given in the form of 2D Autocad DWG drawing file. Download the Autocad DWG drawing file.

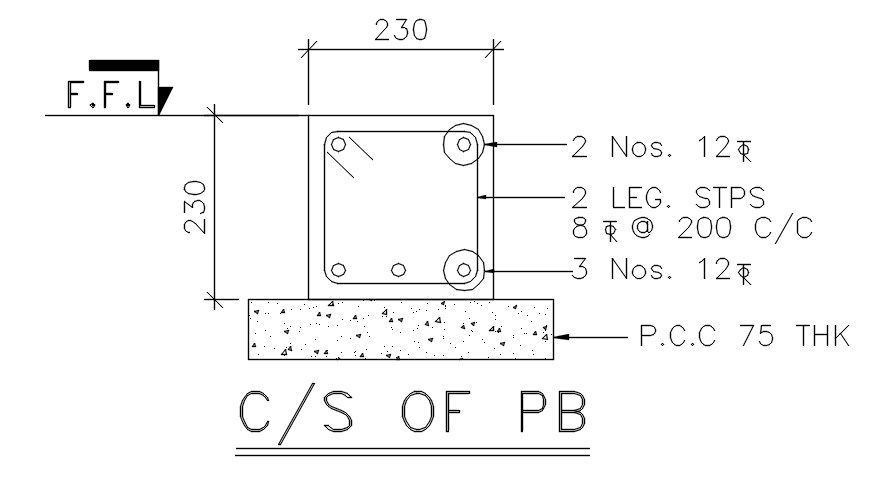

Cross section of plinth beam is given in the form of 2D Autocad DWG drawing file. Cross section of beam is 230x230mm. 2nos of bars provided at the top with 12mm dia. At bottom 3 nos of bars provided with the 12mm dia. Thickness of of PCC is 75mm. 2 legged stirrups with 8mm dia and 200mmc/c. Thank you for downloading the AutoCAD file and other CAD program files from our website.
