Section details of petroleum tank and pump house has given in this Autocad 2D DWG drawing file. Download the Autocad DWG drawing file.

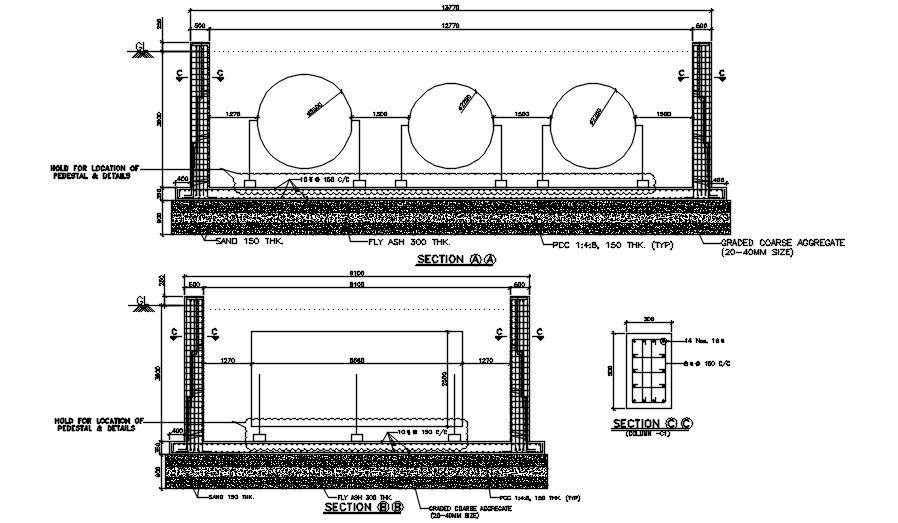

Section details of petroleum tank and pump house has given in this Autocad 2D DWG drawing file. Fly ash thickness is 150mm. Sand filling thickness is 150mm. Graded coarse aggregate is 20-40mm. Thickness of PCC is 150mm. Column section details are given. 14 nos of 16mm bar is provided. 8mm stirrups is provided with 150mmc/c. Other details are given in this drawing file. Thank you for downloading the Autocad drawing file and other CAD program files from our website.
