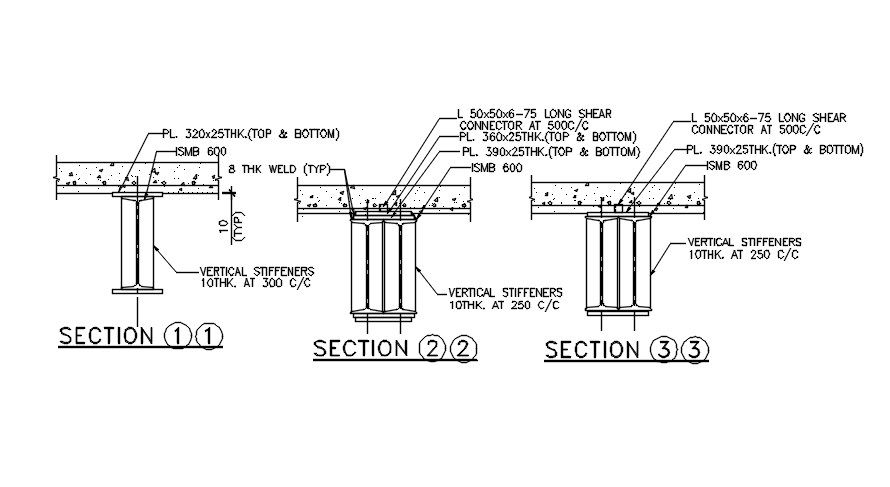

Section view of the slab of water intake well has given in the Autocad 2D DWG drawing file. At section 1, vertical stiffeners 10mm thickness at 300mmc/c is provided. At section 1, vertical stiffeners 10mm thickness at 250mmc/c is provided. At section 1, vertical stiffeners 10mm thickness at 250mmc/c is provided. An ISMB 600 section is used for the three sections. Other details are given in the model. Thank you for downloading the AutoCAD drawing file and other CAD program files from our website.
