Plan of foundation, beam and column section details are given in this 2D Autocad DWG drawing file. Download the 2D Autocad DWG drawing file.

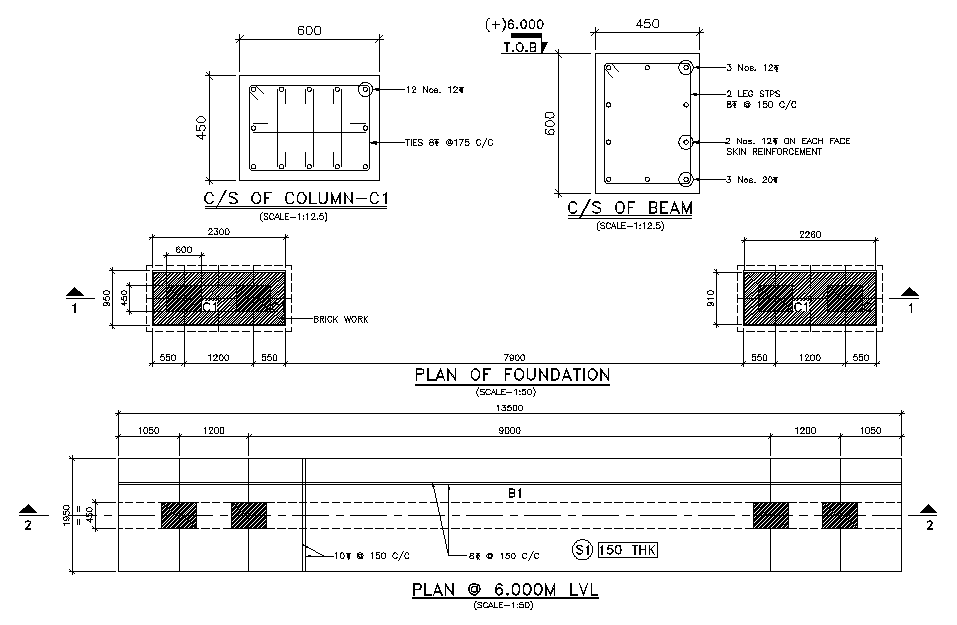

Plan of foundation, beam and column section details are given in this 2D Autocad DWG drawing file. At beam, 3 nos of 12 mm diameter is provided at the top and 3 nos of 20mm bars provided at bottom. 2 legged stirrups 8mm diameter with 150mmcc spacing. At column, 12 nos of 12mm diameter provided. Thank you for downloading the AutoCAD file and other CAD program files from our website.
