Section details of pile cap and pedestal for equipment foundation has given in this 2D Autocad DWG drawing file. Download the Autocad 2D DWG drawing file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

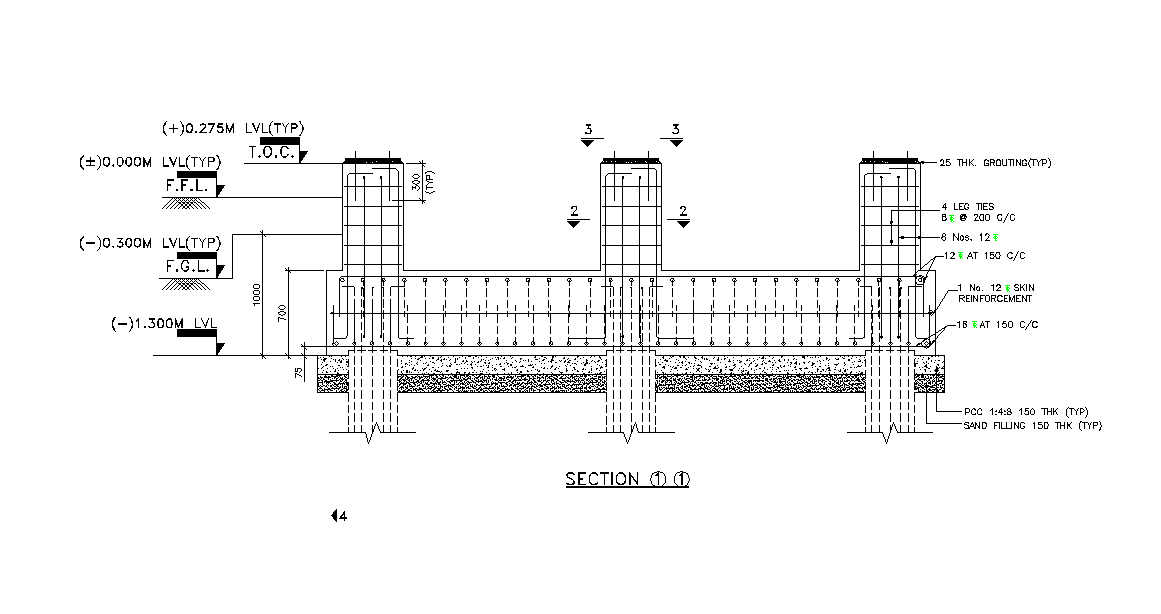

Section details of pile cap and pedestal for equipment foundation has given in this 2D Autocad DWG drawing file. Thickness of sand filling and PCC is 150mm. 1 no of 12mm diameter skin reinforcement is provided. 25mm thickness of grouting is provided. Thank you for downloading the 2D Autocad file and other CAD program files from our website.
