Section of Foundation reinforcement details of the boiler feed pump is given in this form of 2D Autocad DWG drawing file. Download the 2D Autocad DWG drawing file.

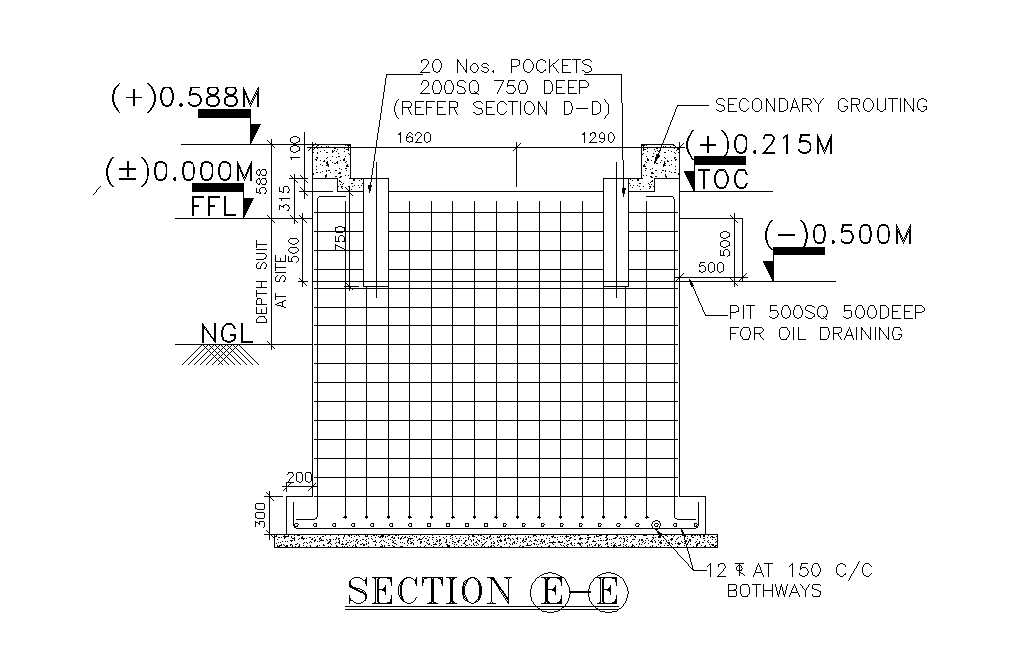

Section of Foundation reinforcement details of the boiler feed pump is given in this form of 2D Autocad DWG drawing file. In this drawing motor room, ties and links are mentioned. PIT 500SQ 500 deep for oil draining is provided. Layout of foundation is 11.125x3.5m. Secondary grouting, quick setting cement, OPC concrete, 20 nos deep pockets 200sqx750 and foundation bolts are mentioned in this drawing model. Thickness of grouting and PCC is 100mm. Other details are given clearly in this drawing model. Download the 2D AutoCAD DWG drawing file. Thank you for download the 2D AutoCAD DWG drawing file and other CAD program files from our website.
